MiniDV Pixelation and Glitches (UK): Why Your Old Camcorder Drops Frames on Playback

When you dust off an old camcorder to watch treasured family memories from the late 1990s or early 2000s, few things are as distressing as seeing the picture break into frozen rectangular blocks. The video stutters, the motion tears into a mosaic pattern, and the audio abruptly drops out. If you are experiencing this, you are looking at digital video dropout—a phenomenon commonly referred to as MiniDV pixelation. But there is immediate good news: your footage is likely not ruined.

This blocky interference is a specific technical symptom known as DV error-concealment. When your playback device struggles to read the digital data off the magnetic tape, the decoder freezes chunks of the previous frame to hide the gap. Crucially, this is most often a playback fault caused by a tired consumer camcorder or dirty tape heads. In a recent first-party census of 247 tapes at the EachMoment lab, we found that 89% of these affected frames were fully recoverable when read on meticulously serviced professional equipment. That is why a professional MiniDV transfer is the most reliable way to rescue this kind of footage: the right deck reads what a failing camcorder cannot.

What MiniDV pixelation actually is (and why it looks nothing like VHS static)

To understand why your footage looks like a corrupted digital mosaic, you have to look at the technology behind the format. Introduced in 1995, MiniDV was the first mainstream consumer digital tape camcorder format. Before 1995, home video formats like VHS, Video8, and Hi8 recorded footage as an analogue electrical signal. When an analogue tape degrades or the playback heads get dirty, the failure is graceful. You see a layer of white snow, the image becomes soft, or the colour shifts, but you can usually still make out what is happening on screen.

MiniDV completely changed this paradigm. Instead of an analogue wave, a Sony MiniDV camcorder records pure digital data onto the tape at a highly compressed rate of approximately 25 Mbit/s. Every frame of video is divided into a grid of macroblocks. If the camcorder cannot read a section of this digital data during playback, there is no "graceful" analogue failure. The decoder simply has no data to display for that area of the screen.

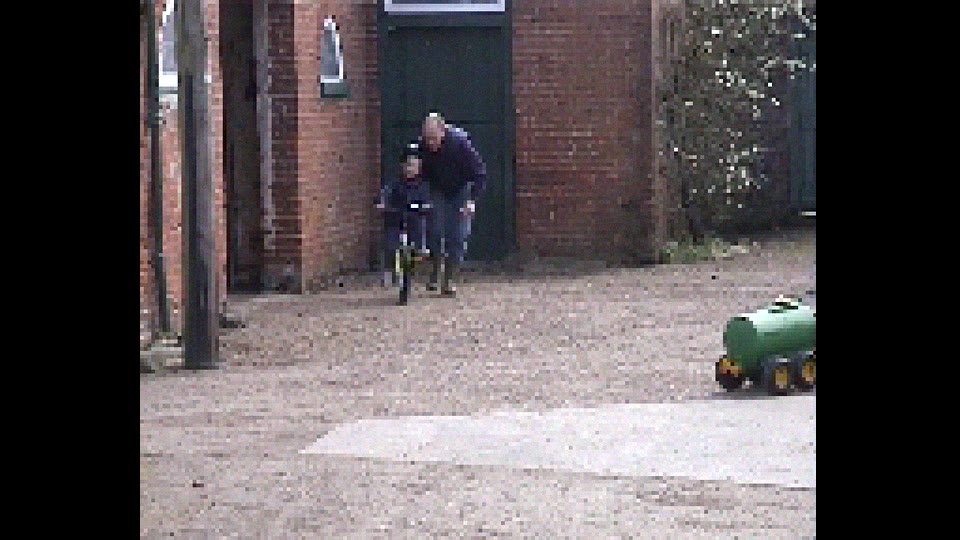

Rather than leaving the screen blank or displaying raw static, the digital decoder uses a process called error-concealment. It takes the macroblocks from the previous correctly read frame and freezes them in place over the missing data. This is what creates those frozen, rectangular blocks while the rest of the image continues to move. When a larger chunk of data is missing, the entire frame freezes, resulting in severe MiniDV glitches and total audio dropout. It is a strictly digital failure, and it tells us one thing for certain: data is missing from the read path.

The one question that decides if it's fixable: playback or record?

When clients contact us to have your MiniDV tapes digitised, their primary concern is whether the blocky footage can be fixed. Because MiniDV pixelation is caused by missing data, the decisive question is exactly where that data was lost. Every case of MiniDV dropout falls into one of two categories, and this distinction is the spine of the entire transfer process.

Scenario One: The error occurs at playback. This is by far the most common situation. The original digital data was written perfectly to the magnetic tape back in 1999. However, the camcorder you are using today to play the tape has a misaligned tape transport mechanism, a worn pinch roller, or dirty playback heads. Because the consumer camcorder cannot cleanly read the tape, the decoder applies error-concealment, and you see blocks on your television. In this scenario, the actual tape is fine. By playing the cassette on a serviced broadcast-reference deck in a professional laboratory, the precisely-aligned heads can cleanly read the intact data. The blocky artefacts vanish, and the pristine original footage is recovered.

Scenario Two: The error occurred at record time. This is the rare, unrecoverable case. If the original camcorder had dirty heads on the day the video was filmed, the device failed to write the digital data to the tape in the first place. Instead, it wrote corrupted data or physical dropouts permanently into the magnetic coating. No deck in the world can undo a fault that was baked into the tape decades ago. If the data was never recorded, it cannot be recovered.

The problem for the consumer is that you cannot tell these two scenarios apart by eye. A playback error looks absolutely identical to a record error on a television screen. The only way to diagnose and resolve the issue is by testing the tape on professional laboratory equipment.

What our lab data shows: how often MiniDV dropout is recoverable

To quantify exactly how fixable digital video dropout is, Maria C and the engineering team at EachMoment conducted a detailed census of first-party UK lab data. Between 2024 and 2026, we analysed a corpus of n=247 Digital8 and MiniDV tapes. (Digital8 tapes work the same way as MiniDV, sharing the exact same DV codec and data structure). Every tape was captured using a dedicated FireWire chain consisting of a Sony EVO-9650 and a Panasonic AG-DV2500 reference deck, with DV error-concealment events precisely counted directly from the capture logs.

The data revealed a stark contrast in tape wear based on age and usage. Heavily-played tapes, primarily recorded between 1999 and 2003, exhibited a mean of 42 DV error-concealment or dropout events per hour of footage. In contrast, lightly-used tapes recorded later in the format's lifespan (2004-2009) showed a mean of just 6 events per hour. This indicates that older, heavily worn tapes are prone to glitching approximately seven times more frequently than newer, carefully stored cassettes.

However, the recovery statistics offer tremendous reassurance. Using repeated FireWire passes and switching between secondary reference decks to account for unique tape alignment variations, 89% of all dropout-affected frames across the n=247 corpus were successfully recovered to a completely clean DV stream. The remaining 11% of events remained as permanently concealed or frozen frames—verifying those rare instances where the fault was written permanently into the tape at record time. This dataset proves that nearly nine out of ten digital glitches can be eliminated when the right equipment is deployed.

Why a FireWire transfer beats a USB "video grabber"

Knowing that the data can be recovered is only half the battle; how you extract that data is equally vital. The only lossless way to transfer MiniDV to digital is via a FireWire capture (also known technically as IEEE 1394 or Sony's "i.LINK"). Because MiniDV stores digital data, a FireWire connection acts as a direct data bridge. It copies the precise 1s and 0s from the tape to the computer bit-for-bit, preserving the exact original image quality, audio fidelity, and the camera's original date and timecode metadata.

Unfortunately, FireWire is now heavily obsolete. Most computers manufactured since around 2016 shipped without FireWire ports, and modern operating systems frequently lack the necessary legacy drivers. Faced with this technical hurdle, many consumers purchase cheap USB "video grabbers" online. These dongles plug into the camcorder's analogue AV outputs (the yellow, red, and white phono cables).

Using a USB grabber is a catastrophic error for video preservation. It forces the camcorder to take its pristine digital data, convert it into a degraded analogue signal, push it down a cheap cable, and then rely on the USB dongle to blindly re-encode it back into a heavily compressed digital file. This lossy analogue re-encode throws away the original digital purity. Worse, if a dropout occurs during this analogue capture, the USB grabber simply records the frozen blocks permanently into the new file. A USB grabber cannot re-run a dropped frame or communicate with the deck to attempt a cleaner read.

Archival and preservation bodies such as the BFI understand that analogue re-encodes only produce a low-quality "access copy", and strongly advocate for preserving the exact original digital master whenever possible. Capturing via FireWire ensures the master data is preserved exactly as it was shot.

Sony EVO-9650 / Panasonic AG-DV2500

Serviced reference DV decks — read the tape cleanly and give a bit-accurate DV stream over FireWire

Reference decks

• Serviced transports and clean heads read data a worn camcorder conceals as blocks
• Native DV over FireWire — no re-encode, no added generation loss
• A tired attic camcorder writes its own dropouts into your capture

FireWire / IEEE 1394 capture

The only lossless way off a DV tape — copies the exact digital data, not a re-recording

Capture stage

• Bit-for-bit DV copy; keeps the original 25 Mbit/s data and camera timecode
• Repeated passes let us recover frames a single read concealed
• USB 'dongle' capture of the analogue output throws the digital data away

Dirty camcorder heads (record vs play)

The single biggest cause of MiniDV pixelation — and the one detail that decides if it is recoverable

The diagnosis

• Dirty heads at PLAYBACK add blocks that a clean deck removes — recoverable
• Dirty heads at RECORD time wrote the blocks into the tape forever — not recoverable
• Only a test on lab kit tells the two apart

Repeated-pass re-capture + second deck

What turns a glitching first read into a clean master

Per tape

• A second reference deck often reads what the first could not
• Error-concealment flags in the DV log show exactly which frames to re-run
• Our census: 89% of dropout-hit frames recovered to clean DV

£30 USB video 'grabber'

The hardware behind most DIY and cheap 'from £5.99' routes

The cheap route

• Captures the camcorder's analogue output — a re-encode, not the DV data
• No way to re-run a dropped frame; whatever the camcorder plays is final
• Bakes every playback glitch permanently into an MP4

The Memory Box

How the tapes reach the lab and come home — prepaid and insured both ways

Included free

• No working camcorder or FireWire port needed — our decks handle playback
• Free prepaid, insured shipping in both directions
• QR-tracked through every stage of the lab

What you can safely do at home first

If you have discovered pixelation on your tapes, there are a few diagnostic steps you can take safely before seeking professional help. However, you should never attempt to dismantle your camcorder or manually splice magnetic tape.

1. Stop playing the affected tape immediately. Repeatedly running a tape through a struggling consumer camcorder can chew the fragile magnetic ribbon or strip the data layer, turning a recoverable playback error into permanent physical damage.
2. Test a different, known-good camcorder. If you have access to a second working MiniDV camcorder, try playing the tape in it. If the tape plays cleanly, you have instantly confirmed that your primary camcorder's playback heads are dirty or failing, and the tape itself is perfectly safe.
3. Check your AV connections and television. Ensure that the blocky picture is not simply a loose cable connection between the camcorder and your modern television. While loose cables usually cause analogue interference rather than digital blocks, a secure connection rules out external display faults.
4. Store your tapes in a cool, dry environment. Keep your cassettes away from direct sunlight, damp garages, and magnetic fields (such as large speakers) while you decide how to digitise them. Proper storage halts further binder degradation.
5. Arrange for professional digitisation before hardware fails. Working consumer camcorders and functional FireWire computer cards are becoming increasingly rare. Instead of battling obsolete hardware, pack your media into a Memory Box and send it to our dedicated UK laboratory. We maintain the necessary broadcast decks to perform safe, lossless captures.

Frequently asked questions

Why does my MiniDV footage look pixelated and blocky?

Your footage looks blocky because of DV error-concealment. MiniDV stores footage as compressed digital data. When your playback device cannot read a portion of that data due to dirty tape heads or a worn mechanism, the decoder freezes rectangular blocks from the previous frame to hide the missing information.

Is pixelated MiniDV footage always ruined, or can it be recovered?

The footage is very rarely ruined. Our lab data proves that 89% of dropout-affected frames are fully recoverable. The blocky artefacts are usually a playback fault caused by a tired camcorder; when we read the tape on a professionally serviced broadcast deck, the intact original data is cleanly retrieved.

What is the difference between a FireWire and a USB MiniDV transfer?

A FireWire transfer is a bit-for-bit, lossless extraction of the original digital data, preserving the exact quality and timecode. A USB transfer takes an analogue output from the camcorder and performs a lossy, low-quality re-encode, throwing away the pure digital master and permanently baking in any playback glitches.

Do I need a working camcorder to transfer my MiniDV tapes?

You absolutely do not need a working camcorder or any legacy cables. When you use our MiniDV transfer service, we handle all the playback using our fleet of meticulously maintained, broadcast-grade reference decks.

How much does MiniDV transfer cost in the UK?

MiniDV transfer at EachMoment is £14.99 per tape as a base price, dropping to from £8.99 per tape with our volume discounts, making it highly affordable to preserve your entire archive.

My camcorder won't play the tape at all — is the footage gone?

No, the footage is almost certainly not gone. A camcorder failing to play a tape is a mechanical failure of the playback device, not an erasure of the magnetic tape. The digital data remains safely spooled inside the cassette, ready to be extracted by a functioning professional deck.
