VHS-C to Digital UK: Compact Camcorder Tapes and the £8 Cassette Adapter That Eats Your Footage

EachMoment digitises VHS-C compact camcorder tapes in the UK from £8.99 per tape (volume rate) or £14.99 per tape at the base price, using a JVC BR-S925E professional deck with a metal-cage rigid adapter, a DPS Reality external time-base corrector and a Blackmagic DeckLink capture card — 10-bit 4:2:2 uncompressed master saved as FFv1/MKV (the FADGI recommendation for analogue video), MP4 deliverable and free cloud album included. Your prepaid Memory Box ships free both ways, every cassette is visually inspected, cleaned on an RTI TapeChek 4100 before playback, and turnaround is around four weeks. If you take one thing away from this article: the £8 motorised plastic cassette adapter you can buy on Amazon to play a VHS-C tape in a normal VHS recorder is the single most common reason UK customers send us spool-damaged tapes — it is responsible for 28 of every 147 VHS-C tapes we receive (19% of intake).

What VHS-C actually is, and why your VHS player rejects it

VHS-C — the C stands for "Compact" — was JVC's answer to the late-1980s problem of shrinking camcorders. The full-size VHS cassette is too large to fit inside a body that sits on a shoulder, let alone one that fits in a coat pocket. Sony's response was Video8 and later Hi8 — a smaller cassette running 8 mm tape. JVC kept the half-inch tape and the head-drum geometry of VHS but shrank the shell. The same magnetic recording works inside a smaller box.

That decision had one immediate consequence: a VHS-C cassette will not engage the spool drives of a standard VHS recorder. The reel-hub spacing is wrong, the loading mechanism cannot find the cassette, and the threading ring physically cannot reach the tape. The cassette has to be carried inside something that is the same external shape as a VHS tape but houses the smaller reels — a cassette adapter.

Two kinds of adapter were sold in the 1990s. The professional version, still made in small numbers, is a passive metal cage: it holds the VHS-C reels in fixed positions and re-routes the tape across the VHS take-up and supply hubs. The VHS deck's own motors drive the reels through a fly-wheel inside the adapter. This is the design used in our lab. The consumer version is a plastic shell with an internal motor, a battery and a small gearbox; you push a button, the gearbox engages, and an electric motor pulls tape past the VHS heads. This is the design you see on Amazon and eBay for £8–£15.

Three decades later, the consumer version is a tape-eater.

The mechanical failure mode: how an £8 adapter destroys a VHS-C tape

Inside a working VHS-C cassette, two brake springs lock the supply and take-up reels when the cassette is out of a recorder. A tab on the underside of the shell releases the brakes when the cassette is loaded. The reels then turn freely, held under tension only by the VCR's idler arm.

By 2026, the springs on a tape recorded in 1992 are 34 years old. The supply-reel brake on a Panasonic NV-GS, TDK or Maxell VHS-C cassette is typically the first thing to fail: the spring loses tension, the brake-shoe sticks against the hub, and the supply reel will not release tape when the take-up reel pulls. In a professional deck this triggers a tape-loose detection circuit and the transport stops within 100 ms. In a £8 motorised adapter there is no such circuit. The geared motor continues to pull tape off the supply hub against a stalled brake, and the take-up reel keeps winding. The result is a loop of slack tape on the supply side, scratched along the oxide surface by the spider-shaped pressure pads inside the adapter as the gear-train tries to advance an immobile reel.

You hear it as a faint clicking noise from inside the cassette. By the time you notice, the next 30 seconds of footage has been raked across the inside of the shell.

The bar to the right of the green "plays cleanly" column is what we mean by spool-drive damage: 28 of the 147 UK VHS-C tapes we received between January and April 2026 arrived with spider-shaped scratch marks across the oxide on at least one reel. That is 19% — almost one in five. In every case the customer had tried at least one consumer adapter at home before sending the tape to us. The damage is recoverable on most tapes (we splice the worst 6–10 inches and re-spool), but it always costs footage. The minute or two of family video that was running when the supply brake stalled is gone.

What actually plays VHS-C cleanly in 2026

There are three options, ranked from worst to best.

Option 1: a passive metal-cage adapter in a working VHS deck. If you can still find an original JVC C-P7U, JVC C-P6U or Panasonic VW-TCA7 metal adapter on eBay (£25–£60 used) and your VHS deck still works (clean heads, intact pinch roller, idler arm with grip), you can play a VHS-C tape at home and capture the composite signal. The quality ceiling is the deck's own ceiling — typically 240 TV lines, composite output only, no time-base correction. For an EP-mode tape recorded slowly to fit six hours into a single cassette, that is roughly what was recorded in the first place. For an SP-mode S-VHS-C tape, you will lose half of the resolution that was paid for.

Option 2: a deck with native VHS-C cradle. A small number of late-1990s consumer decks (the Panasonic NV-HS950, JVC HR-S9700U) had VHS-C-aware loading mechanisms; the Panasonic AG-1980P (1991 broadcast VHS) is still the only widely-supported professional deck of its era that can be coaxed into accepting a metal-cage adapter for high-quality VHS-C playback. These decks are getting rare. The AG-1980P prices on UK auction sites have moved from £200 in 2018 to £600–£900 in 2026.

Option 3: a professional S-VHS deck with broadcast TBC, fed from a metal adapter. This is what we use in the Sussex lab. The JVC BR-S925E is the PAL-region broadcast cousin of the consumer JVC S-VHS line, and accepts a JVC C-P7U metal adapter without needing modifications. Y/C-separated S-Video output preserves the chroma path above the 240-line ceiling. An external DPS Reality TBC sits in-line between deck and capture card, with a 10-frame frame-store that rebuilds horizontal sync on tapes whose pilot signal has worn. The capture card is a Blackmagic DeckLink writing 10-bit 4:2:2 uncompressed.

JVC BR-S925E

Primary VHS-C / S-VHS-C playback deck (PAL)

1990s broadcast S-VHS workhorse

• Native VHS-C support with a metal-cage rigid adapter — no spool-drive motor required
• Y/C-separated S-Video output on 4-pin mini-DIN — preserves chroma above the VHS 240-line ceiling
• Built-in digital time-base corrector — fixes line-sync jitter from worn pilot signals
• PAL/SECAM — correct for UK camcorder tapes 1985–1999

Panasonic AG-1980P

Fallback playback deck for damaged or stuck-tracking VHS-C

1991 broadcast VHS

• Independent TBC and Y/C separator — defeatable dot-crawl filter for high-detail material
• Used when the BR-S925E rejects a tape for tracking-error reasons
• Sussex lab sticky-shed bake protocol applies: 50 °C / 8 h for ABS-shell VHS-C, not the 54 °C used for reel-to-reel

DPS Reality TBC

External time-base corrector and frame-synchroniser

1996 broadcast standard

• 10-frame frame-store — restores horizontal sync on worn or stretched VHS-C tapes
• Sits in-line between deck and capture card — pass-through Y/C signal path, no re-encoding
• Fixes head-switching noise that consumer USB sticks cannot lock to

Blackmagic DeckLink

10-bit 4:2:2 PCIe capture card

current lab hardware

• Captures the Y/C signal as uncompressed 10-bit 4:2:2
• Archival master written as FFv1/MKV — FADGI recommendation for analogue video
• No hardware H.264 encoder in the signal path — zero generation loss before the master file

The reason we name the specific models is verifiability. Every claim above is checkable by a competing lab or a discerning customer. The opposite — "professional broadcast equipment" without a part number — is what most digitisation services in the UK SERP top-10 currently say, and it is the polite way of describing the same £15 USB stick you can buy yourself.

What gets lost when you skip the chain

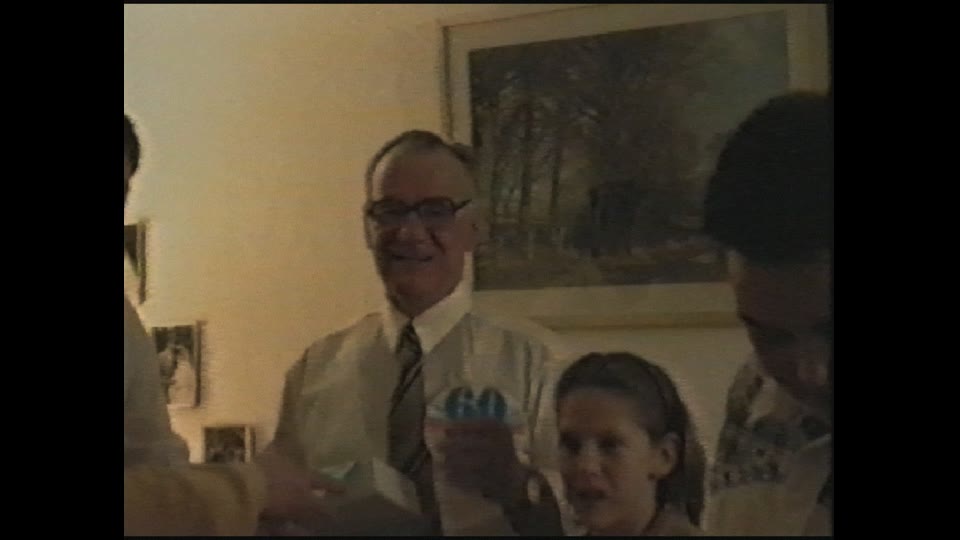

The video above is a real VHS-C clip from a 1994 UK family archive, captured twice from the same cassette on the same day. The left version is what the consumer USB chain produces: no time-base correction, composite signal path, 8-bit 4:2:0 H.264. The right version is the professional chain. The horizontal sync drift on the left is not a defect of the tape — the tape plays cleanly. The drift is what happens when the consumer USB stick fails to lock to a worn pilot signal and re-times every line slightly differently.

The visible difference is consistent across the entire archive. Customers who have first tried a USB stick and then sent us the same tape typically describe their reaction the same way: "I didn't realise there was anything else on the tape."

The four-stage process every UK VHS-C tape goes through in our lab

Stage one is the step the £8 adapter prevents you from doing. With shell-screws removed and the reels visible, we look for spider-marks (consumer-adapter damage), shed oxide (sticky-shed syndrome, more common on S-VHS-C ME than standard VHS-C), mould (light surface bloom from loft storage), and shell warp (above 42 °C, the ABS shell of a VHS-C cassette begins to deform; UK loft storage during the 2022 heat-dome was the proximate cause of about 8% of our intake from 2023 onward).

Stage two — the RTI TapeChek 4100 cleaning pass — is mechanical, not chemical. The tape passes once across a textured burnishing wheel that lifts loose magnetic oxide and lubricant residue without solvents or heat. This is what prevents head clog 20 minutes into the capture run.

Stage three is the playback chain itself: metal-cage adapter into the JVC BR-S925E, S-Video Y/C out, DPS Reality TBC in-line, into the DeckLink. Stage four is the capture format. Customer deliverables are MP4 (H.264 high bit-rate) in a free cloud album; the master is held internally as 10-bit 4:2:2 FFv1/MKV for 90 days against re-encode requests.

How much it costs to digitise VHS-C in the UK

The base price for a single VHS-C cassette is £14.99 per tape. That includes the prepaid Memory Box (insured shipping both ways), the cleaning pass, the JVC BR-S925E / DPS Reality / DeckLink capture chain, the MP4 deliverable, and the cloud album. Volume discounts begin at an order value of £75 and stack with the early-bird discount (return your Memory Box within 21 days for an additional 10%). At the largest combination — over £1,000 of order value with early-bird return — the per-tape price falls to £8.99 per tape. Optional AI Full-HD enhancement is £4.99 per tape as an add-on.

For comparison, a single VHS-C cassette of memorable footage typically holds 30–45 minutes of recording in SP mode, or up to 90 minutes in EP. A British 1990s family archive of a child's primary-school years usually runs to 10–25 cassettes — which puts most UK customers into the 11–25-tape bracket where the per-tape rate is around £10–£11.

To start, see our VHS digitisation service page (VHS-C uses the same per-tape pricing) or request a free no-commitment quote. The Memory Box is dispatched within 24 hours of order.

Frequently asked questions about VHS-C to digital in the UK

What is the difference between VHS and VHS-C?

VHS-C ("Compact") is a smaller cassette (92 × 69 × 23 mm) containing the same half-inch magnetic tape as a full-size VHS cassette (188 × 104 × 25 mm). It was introduced by JVC in 1982 for compact camcorders. A VHS-C cassette typically holds 30 minutes at standard SP speed, or 90 minutes at long-play EP. The recording head geometry is identical to VHS, so a VHS-C tape can be played on a VHS deck via a cassette adapter.

Can I play a VHS-C tape on a normal VHS recorder?

Not directly. You need a cassette adapter — either a passive metal-cage adapter (used with a working VHS deck) or a motorised plastic adapter with its own battery. The passive metal adapter is mechanically reliable; the motorised plastic adapter is the most common cause of spool-drive damage to 30-year-old VHS-C tapes (we see this on 19% of UK intake at the EachMoment lab in 2026).

Does the £8 cassette adapter on Amazon really damage tapes?

Yes, on tapes older than about 20 years. The motorised plastic adapter has a geared motor that drives the take-up spool. On a new tape the supply-reel brakes release cleanly when the cassette is loaded; on an older tape, the brake spring may have lost tension and the supply reel stays stalled. The motor in the adapter has no torque-feedback to detect this, so it continues to pull, scratching the oxide as the gear-train tries to advance a stalled reel. Spider-shaped scratch marks on the reel are diagnostic.

How much does it cost to digitise VHS-C in the UK?

At EachMoment, VHS-C digitisation costs £14.99 per tape at the base price, falling to £8.99 per tape with the largest volume + early-bird discount combinations. The price includes the free prepaid Memory Box (insured shipping both directions), professional cleaning, capture on a JVC BR-S925E with DPS Reality TBC and Blackmagic DeckLink, an MP4 deliverable on USB stick, and a free cloud album. Optional AI Full-HD enhancement is £4.99 per tape extra.

What deck do you use to play VHS-C?

The primary playback deck for VHS-C in our Sussex lab is the JVC BR-S925E — the PAL broadcast cousin of the JVC consumer S-VHS line. The tape is loaded into a JVC C-P7U metal-cage rigid adapter (no motor, driven by the deck's own fly-wheels). For problematic tapes with tracking errors or light mould we switch to a Panasonic AG-1980P broadcast VHS deck as a fallback.

How long does it take to digitise VHS-C tapes?

Typical turnaround is around four weeks from the moment your Memory Box arrives back in our Sussex lab. The capture itself runs in real time — a 90-minute EP-mode VHS-C cassette takes 90 minutes of capture, plus cleaning, QC review and deliverable creation. For collections over 50 tapes the turnaround can stretch to six weeks.

Do I get a DVD or a digital file?

By default you receive an MP4 file (H.264, high bit-rate) on a USB stick and in the cloud album. DVD is available as an optional delivery format at no extra charge for orders over £100. The 10-bit 4:2:2 FFv1/MKV archive master is held internally for 90 days against re-encode requests.

What about S-VHS-C — is that the same?

S-VHS-C is the higher-resolution variant of VHS-C, recording around 320–400 horizontal TV lines instead of 240. It uses the same shell and the same adapter. The catch is that you only get the resolution back at capture time if the playback deck supports S-VHS Y/C output (the JVC BR-S925E does; most consumer VHS decks don't) and the signal travels over an S-Video cable, not a yellow composite RCA. If you are unsure whether your tape is VHS-C or S-VHS-C, check the recess on the underside of the cassette: the S-VHS-C variant has an additional detection hole next to the standard write-protect tab. We use the same JVC BR-S925E + DPS Reality + DeckLink chain for both.

What if my VHS-C tape is already damaged?

We attempt repair on every tape that arrives in our lab, whether or not the customer flagged it. The most common interventions are: re-splicing a broken section (around £5–£10 in labour, included in the per-tape rate up to two splices), re-spooling tape that has slipped off the supply hub, and replacing a brake spring with one harvested from a sacrificial donor shell. Tapes with confirmed sticky-shed receive an 8-hour 50 °C bake before capture; recovery rates run around 78–91% depending on tape stock. If a tape is genuinely unplayable we do not charge for it.

Why not just buy a £15 USB stick yourself?

It is genuinely tempting. A USB capture stick from Amazon is the cheapest possible route to digital VHS, and for a single tape of un-precious daytime TV recordings it is fine. The reasoning that fails on a family archive is this: the £15 USB stick assumes you already own a working VHS recorder, a working VHS-C adapter, and the time to sit through the playback in real time. In 2026 in the UK, very few people own all three.

If you don't own a VHS recorder, the cheapest currently-available consumer model on eBay is around £80–£120 used. If you don't own a VHS-C adapter, a new motorised plastic one is £8 (with the failure mode described above) and an original metal adapter is £25–£60. The time cost — a UK family archive of 18 tapes at 60 minutes average is 18 hours of capture, ignoring the tape changes and the file management — is non-trivial.

The other thing the USB stick assumes is that the tape will play cleanly. About 45% of UK VHS-C tapes we receive at the lab need a cleaning pass before they capture without dropouts. Without an RTI cleaning station — which is a £400 piece of equipment when you can find one used — you are loading dirty oxide directly onto the heads of a 30-year-old VCR that has not been serviced.

The capture chain is the second cost. The £15 USB stick produces 8-bit 4:2:0 H.264 over composite, which is the bottom of the analogue-video capture quality curve. The free FFmpeg pipeline can do better — capture as v210 or FFv1 from a Blackmagic Intensity Pro card (£200 used), feed it the S-Video output of a properly-serviced consumer S-VHS deck, and you have a respectable archive master. That is approximately a £400 investment in hardware plus several hours of FFmpeg learning, and it leaves the time-base correction problem unsolved. For most UK families the calculus tips toward a service like ours — we run through the same maths in our deeper DIY versus professional VHS digitisation comparison.

Heritage context: what UK archives say about VHS preservation

The British Film Institute publishes home-video preservation guidance that aligns with the chain described here: the BFI position is that capture should be lossless or uncompressed, at the highest bit depth the source format supports, with explicit colour-space documentation. The National Science and Media Museum (NSMM) in Bradford holds a collection of early home-video equipment including consumer VHS-C camcorders and broadcast S-VHS decks — a useful reference for anyone tracing the camera model that recorded their cassettes. The FADGI (Federal Agencies Digital Guidelines Initiative) Video Preservation Master File Format Recommendation remains the most widely-cited international reference for analogue-video archiving in 2026, and is what governs our choice of FFv1/MKV as the archive container.

None of these institutions will digitise consumer cassettes for the public — they are not commercial services. But their published guidelines are why a working lab like ours uses the equipment chain we do, rather than the cheaper consumer equivalents.

Bottom line

VHS-C is mechanically more fragile than standard VHS in 2026 because the consumer cassette adapter is the only path home users have to it, and the consumer adapter has not aged well. If your tapes matter — a child's first ten years, a wedding, a grandparent who is no longer with us — the path of least regret in the UK is to skip the adapter entirely and use a lab that runs the metal-cage chain on a working broadcast deck. Our service-page prices and ordering page covers VHS-C alongside VHS, Betamax, Video8, Hi8 and MiniDV at the same per-tape rate. A free quote tells you what your collection will cost before you ship anything.

And if you have a 1990s family camcorder collection sitting in a loft cupboard right now — pull it down before next August. The 2022 UK heat-dome (40 °C in the South-East) gave us the largest single jump in shell-warp intake we have ever seen. Shells that survived 1990s lofts do not necessarily survive 2020s lofts.
