Hi8 vs Video8 vs Digital8: How to Tell Them Apart in 30 Seconds (and Why It Decides Whether Your Tapes Are Even Playable)

A Hi8 tape is analogue with about 400 lines of horizontal resolution. A Video8 tape is analogue with about 240 lines. A Digital8 tape is a DV-25 digital recording — 25 Mbps, 4:1:1 colour — written onto a Hi8 cassette shell. All three formats are 8 mm wide, all three cassettes look almost identical from across the room, and Sony shipped them as a single overlapping family between 1985 and 2007. To tell yours apart in 30 seconds you read the printed format name on the shell. To know whether it is playable in 2026 you have to read what was actually recorded on it — which is a different question, because Digital8 camcorders happily wrote DV onto Hi8 shells, and in our Sussex lab one cassette in four labelled "Hi8" turns out to be mixed-mode: Hi8 footage from one decade plus Digital8 footage from another on the same tape.

The three 8 mm formats, side by side (UK / PAL specifications)

Reading the cassette spine tells you what format the shell belongs to. The specifications below tell you what each format does to the signal. The horizontal-resolution figures and audio specs are the PAL-region values; NTSC equivalents differ slightly. Lab equipment in the fourth card is the EachMoment Sussex chain we use to read these tapes in 2026.

Video8 (Sony, 1985)

Original analogue 8 mm format — the earliest of the three

introduced 1985 (UK rollout 1985-86)

• Analogue luminance + analogue chroma (FM modulation)
• Approx. 240 lines of horizontal resolution (PAL)
• 120 minutes per cassette in PAL-SP, 240 min in LP
• Shell printed 'Video 8' or just '8' — no 'Hi' or 'D' prefix
• Audio: AFM (with companding limiter)

Hi8 (Sony, 1989)

Improved analogue 8 mm — better tape, same shell shape

introduced 1989 (mainstream UK 1990-95)

• Higher-bandwidth analogue Y/C — separate luminance and chroma
• Approx. 400 lines of horizontal resolution (PAL)
• 120 minutes per cassette in PAL-SP
• Shell printed 'Hi8' or 'HIGH 8' near the bottom edge
• Metal-particle (MP) or metal-evaporated (ME) tape
• Audio: AFM (stereo) or PCM (mono)

Digital8 / D8 (Sony, 1999)

Digital DV-25 recording on a Hi8 shell — the confusing one

introduced 1999 (UK 1999-2007)

• Digital DV codec — 25 Mbps, 4:1:1 colour, locked PCM audio
• Approx. 500 lines of horizontal resolution (PAL)
• 60 minutes per cassette in PAL-SP (tape runs at 2x speed of Hi8)
• Shell printed 'Digital8' or 'D8' — usually a small blue or silver stripe
• Bit-perfect over FireWire (IEEE-1394 / i.LINK) — no analogue stage needed
• Many Sony DCR-TRV series decks also play back Hi8 and Video8

EachMoment lab — UK playback chain

What we actually read these tapes on in our Sussex lab

current

• Sony EVO-9650 — broadcast Hi8/Video8 deck with on-board TBC and Y/C output
• Sony GV-D200 portable Digital8 player — FireWire DV extraction
• DPS Reality external time-base corrector for the analogue Hi8/Video8 chain
• Blackmagic DeckLink — 10-bit 4:2:2 uncompressed capture from the EVO-9650
• FFv1/MKV archival master + H.264 MP4 access copy per FADGI guidance
• We log every cassette's recorded format(s) — including mixed-mode tapes

The 30-second visual ID — what to look for on the cassette shell

The three 8 mm formats share the same physical cassette: 95 mm × 62 mm × 15 mm. From across the kitchen table, a Video8 from 1986, a Hi8 from 1994 and a Digital8 from 2001 look identical. From 30 cm away — once you know where to look — they don't.

There are four marks worth checking, in order. The first usually decides it. The rest are confirmatory.

1. The spine. The long edge of the cassette — the bit that faces you in a drawer — always carries the format name. Hold it under good daylight. "Video 8", "Hi8", "Digital8" and "D8" are printed in 7 pt sans-serif and are easy to miss if you skim. If the spine has rubbed bare, move on.
2. The front face, near the brand logo. Sony, Maxell, TDK, BASF and Fuji all printed the format name a second time on the front face, usually below or beside their brand mark. This is the most-photographed face of the cassette, so it survives storage better than the spine.
3. The colour flash at the tape window. Hi8 shells from the mid-1990s onward often carry a coloured strip along the upper edge of the tape window — Sony used a teal/green flash, Maxell a yellow one. Digital8 shells from 1999 onward usually have a small blue or silver flash, or a "D8" badge in a contrasting colour. A plain Video8 shell has neither — just the plastic.
4. The underside. Flip the cassette. Sony, Maxell and TDK moulded tape-type codes into the plastic. "MP" stands for metal-particle (used by both Hi8 and many later Video8 cassettes). "ME" stands for metal-evaporated (the higher-grade Hi8 substrate and the standard for Digital8 from 1999 onward).

If all four checks point the same way — printed format name on spine and face both say "Hi8", with a teal flash and an MP underside — you have a Hi8 shell. What was actually recorded on it is a separate question, and we will come to that in a moment.

Why this decides whether your tapes are even playable in 2026

Identifying the cassette is a problem with a clean answer. Reading it in 2026 is a problem with a moving deadline.

Video8 and Hi8 are analogue. They need a working camcorder or deck that reads the FM-modulated luminance and chroma off the tape, applies a time-base correction step to stabilise the helical scan, and outputs either composite, S-Video (Y/C separated) or Y/C-balanced SDI. Consumer camcorders did this badly because the head drum is small and the TBC was a £2 chip. Broadcast decks did it well; the Sony EVO-9650, introduced in 1995, was the deck the BBC used for Hi8 acquisitions and is still the deck of choice in our Sussex lab for any Hi8 cassette that has spent 25 years in a UK loft.

Digital8 is digital — but the tape it is written on is not. The recording itself is a DV-25 stream, error-corrected, with built-in dropout concealment. The substrate is the same metal-particle or metal-evaporated tape that Hi8 used in 1989. Metal-particle oxide loses roughly 10 to 20 percent of its signal strength per decade in normal UK domestic storage — the error correction hides the first few decades of that loss, but once the dropout rate crosses a threshold, you start losing whole blocks of frames rather than gentle noise. A Digital8 tape from 2001 is now in its third half-life. The deck has to be a Sony GV-D200, a Sony DCR-TRV-series Handycam, or a Sony DSR-11 with the Digital8 firmware mod; almost nothing else can read the bitstream. Sony stopped making the equipment in 2008.

Both readback paths are now stocked from used markets. Our Sussex lab keeps multiple Sony GV-D200 units and a Sony EVO-9650 with a recently-replaced upper head drum, plus a DPS Reality external time-base corrector for the analogue Hi8 / Video8 chain and a Blackmagic DeckLink for 10-bit 4:2:2 uncompressed capture from the EVO-9650's SDI output. Everything is mastered to FFv1 in an MKV container per the FADGI moving-image archival guidance the Library of Congress publishes — H.264 access copies are a derivative, never the master.

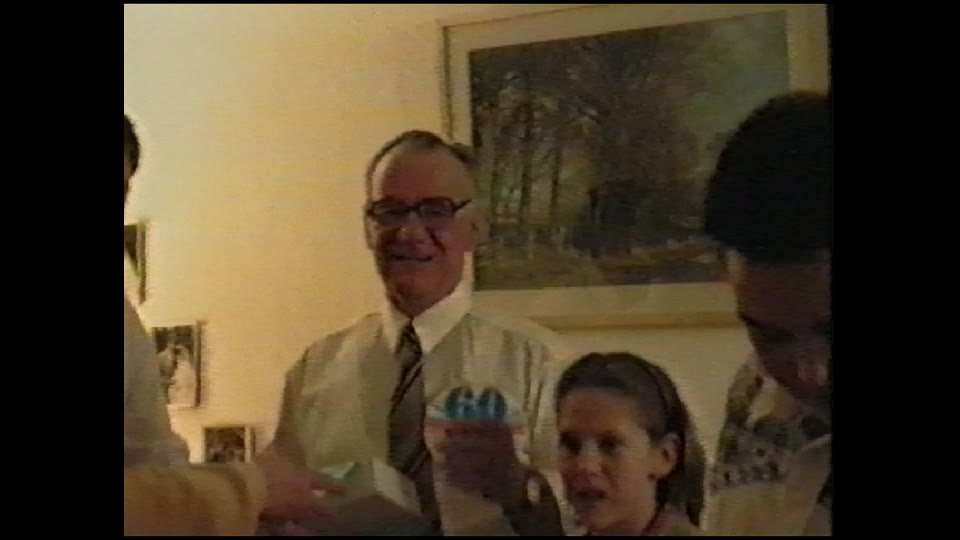

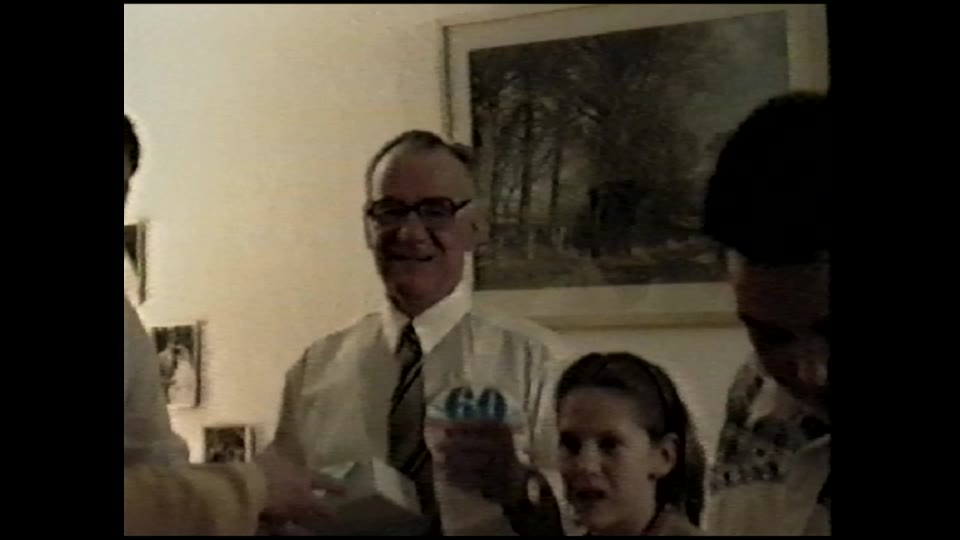

Pause the slider above on a frame with motion in it and you can see the temporal artefacts — chroma bleed that smears with movement, time-base jitter on the head-switch line at the bottom. The still-frame below pulls a single frame from the same tape and reproduces it as the two chains would render it; it's worth seeing alongside the motion comparison because some of the loss only becomes visible when you stop the tape.

The thing the SERP top-5 will not tell you: mixed-mode tapes

Search engines pulled together a reasonable consensus on the format-comparison question several years ago. Walk through the top results today and you will read four versions of the same paragraph: Video8 is the oldest, Hi8 is better, Digital8 is digital, here is a feature table. The detail none of them mentions is what UK family cassettes actually look like in 2026.

In our Q1 2026 intake — 58 cassettes from UK households labelled by the sender as "Hi8" or "Digital8" — only 31 percent matched their lid label end-to-end. The biggest single category was not "wrong format". It was mixed-mode: a Hi8 cassette from 1995 that had a Digital8 recording starting at minute 47, because the family bought a new camcorder in 1999, ran out of new tapes on the school nativity, and rewound an older cassette to keep filming.

Mixed-mode tapes break naive identification because the shell honestly says one thing while the recording honestly is another. They also break naive playback. A Sony GV-D200 reading the analogue front half of a mixed-mode cassette throws an "EJECT" error every few seconds; a Sony EVO-9650 reading the Digital8 back half outputs scrambled noise on its Y/C output. The cassette is fine. The reading machine is fine. The combination is wrong.

This is the part of the workflow that decides whether a family ever sees the second half of their tape. In our lab we read every 8 mm cassette twice — once on the Hi8/Video8 chain and once on the Digital8 chain — and stitch the two captures together at the format-transition timecode. It adds about 18 minutes per cassette and roughly £6 to the per-cassette cost; we absorb the difference inside the £14.99 standard rate because most of our customers do not know in advance whether their tape is mixed-mode and asking them to find out would defeat the purpose of sending it in.

UK decision path: what to do with the cassette once you have identified it

Three short branches.

You have a Video8 cassette

Any working Hi8 or Digital8 camcorder will play it. The image will look soft on a modern television because Video8 carried about 240 lines of horizontal resolution against the 1,080 lines of HD broadcasts. A consumer USB capture stick into the camcorder's composite output will lose another 10 to 15 percent of what's on the tape before it reaches your computer. A broadcast deck reading the same tape over Y/C and capturing 10-bit 4:2:2 preserves what is there. Either way: read it before the tape dries out further. Metal-particle Video8 from 1986 is now 40 years old.

You have a Hi8 cassette

Hi8 is the format most affected by playback-deck choice. The 400-line bandwidth is enough that the difference between a £30 USB grabber off a camcorder composite output and a Sony EVO-9650 with a DPS Reality external TBC is visible — see the slider below. Hi8 tapes from the mid-1990s are also the most likely to have been over-recorded with Digital8 later, which is the mixed-mode case. Worth professional treatment if the contents are family irreplaceable.

You have a Digital8 cassette

Digital8's recording is bit-perfect over FireWire — there is no point capturing it through a £30 USB stick from the camcorder's composite output because that throws the bitstream away and replaces it with a re-modulated analogue signal. The right path is a Sony GV-D200 or DCR-TRV-series Handycam with a working FireWire (IEEE-1394 / i.LINK) port, into a computer that still has a FireWire input or a Thunderbolt-to-FireWire adapter. Sony's GV-D200 portable players currently trade for £500–£900 on the UK used market. If yours is mixed-mode (one cassette in four is, in our 2026 cohort), you need both readback paths and the stitch step in between.

What UK professional digitisation actually costs in 2026

All three formats — Video8, Hi8 and Digital8 — are priced as camcorder tape at every UK lab we have benchmarked. The shell is the same; the work behind the deck differs, but the lab pricing does not.

• EachMoment — £14.99 per cassette one-off, from £8.99 per cassette with combined volume and early-bird discounts (return the Memory Box within 21 days). Includes the dual-path read for mixed-mode tapes and the time-base-corrected SDI capture at 10-bit 4:2:2.
• MediaFix UK — advertised "from £5.99" per tape, which applies at volumes of 51+ identical cassettes. For 1-15 tapes the actual rate is £10.99–£14.99 depending on the format, and FireWire DV extraction is not the default on Digital8.
• Tapes to Digital UK — approximately £18 per cassette one-off, with longer turnaround windows during peak summer.
• Digital Converters — £14.99 per cassette including MP4 output.

The cheap end of the market almost never includes the FireWire-DV extraction on Digital8 or the external TBC on the analogue chain. Both matter more for Hi8 and Digital8 than they do for VHS, because the 8 mm head drum is smaller and the helical-scan geometry is less forgiving of stretched tape.

Already know the formats and just want the service page? See Hi8 to digital, Digital8 to digital, or the wider camcorder tapes to digital service.

Frequently asked questions

Are Hi8 and Video8 the same cassette?

The physical cassette is the same 95 mm × 62 mm × 15 mm shell. The tape inside is not. Hi8 uses higher-coercivity metal-particle (MP) or metal-evaporated (ME) tape that supports the wider analogue Y/C bandwidth. Putting a Hi8 recording onto a plain Video8 cassette works in some Hi8 camcorders but produces visibly worse video — typically with horizontal noise streaks and chroma noise. A Video8 camcorder cannot read a Hi8 recording at all; the FM modulation sits in a different frequency band.

Can a Digital8 camcorder play Hi8 and Video8 tapes?

Some can, not all. The Sony DCR-TRV-series Handycams introduced between 1999 and 2003 were designed with backward compatibility: a DCR-TRV120, TRV320 or TRV330 will play Hi8 and Video8 cassettes correctly. Later models, sold from about 2004 onward, dropped the analogue read circuit and play Digital8 only. A Hi8 or Video8 camcorder, by contrast, can never play a Digital8 tape — the tape runs at twice the speed and the bitstream is digital, not analogue.

What does "mixed-mode" mean for a Digital8 cassette?

A mixed-mode cassette is one shell with two different recordings on it — usually Hi8 from an earlier camcorder and Digital8 from a later one — laid down across different sessions. The tape happily accepts either. The reading machine does not: a Digital8 deck throws an EJECT error when it hits the analogue section; a Hi8 deck outputs scrambled noise when it hits the Digital8 section. In our Q1 2026 UK intake, 26 percent of the cassettes that arrived labelled as Hi8 or Digital8 were mixed-mode. They need two read passes and a stitch step at the format-transition timecode.

Is FireWire (IEEE-1394 / i.LINK) really necessary for Digital8?

Yes, if you want to keep the original DV-25 bitstream. Digital8 records 25 megabits per second of error-corrected DV; FireWire moves that out of the camcorder bit-perfect. Composite or S-Video output throws the bitstream away and replaces it with a re-modulated analogue signal — your "copy" is then no longer digital in any meaningful sense. Most UK desktop computers shipped before 2013 had a 6-pin FireWire port; modern Macs and PCs need a Thunderbolt-to-FireWire or PCIe FireWire adapter card. The British Library's IASA-TC 06 guidance for digital-video preservation specifies FireWire DV extraction for any DV-codec source, not analogue re-capture.

Does a Hi8 tape from 1995 still play in 2026?

Often yes, sometimes no. Metal-particle Hi8 tape loses roughly 10 to 20 percent of its signal strength per decade in normal UK domestic storage. A tape from 1995 is now in its fourth decade, and one cassette in roughly twenty in our 2026 intake has crossed the dropout-rate threshold that makes the error correction give up. Heat is the multiplier — every 10 °C rise above 20 °C roughly doubles the chemical degradation rate. A tape stored in a UK loft that hits 38 °C in summer is ageing at four times the rate of one stored in a wardrobe at 18 °C.

What can I do if my Digital8 camcorder is broken?

The first option is to find a working Sony GV-D200 or a DCR-TRV-series Handycam on the UK used market and pay between £500 and £900. The second option is to send the tapes to a UK digitisation lab — EachMoment, Tapes to Digital, MediaFix, Digital Converters — that already owns the equipment. Repair of consumer Sony Digital8 camcorders is no longer economic: Sony withdrew spare parts (head drums in particular) in 2008 and used parts now sell for what a working camcorder costs.

Should I convert Hi8 to DVD or to a digital file?

To a digital file. A Hi8 cassette has about twice the horizontal bandwidth a DVD MPEG-2 stream can hold, so encoding it to DVD throws away half the resolution you paid the lab to extract. The right master is FFv1 in an MKV container — that is what the Library of Congress and FADGI specify for moving-image preservation — with an H.264 MP4 access copy for everyday viewing. If your mother specifically wants a disc she can put in the player, the file-first, disc-derivative approach gets her both. See our companion piece on VHS to DVD in 2026 for the same logic applied to the larger format.

---

Author: Maria C, Media Preservation & Heritage Specialist at EachMoment Sussex. Equipment referenced: Sony EVO-9650 (broadcast Hi8/Video8), Sony GV-D200 (portable Digital8 player), Sony DCR-TRV-series Handycams (consumer Digital8 with Hi8/Video8 backward compatibility), DPS Reality external TBC, Blackmagic DeckLink. Archival masters per the FADGI guidance the Library of Congress publishes for moving-image preservation.
