D-VHS to digital in the UK: rescuing JVC HR-DVS1 high-definition archive tapes when the deck has stopped working
D-VHS tapes record HD video as a 28.2 Mbps MPEG-2 transport stream on a VHS-shaped cassette. To digitise them properly in the UK you need three rare things: a working JVC HR-DVS1 (or HM-DH40000) deck, a path to pull the bitstream losslessly over IEEE-1394 / i.LINK, and a parallel analogue safety capture with an external time-base corrector. Almost no UK service still has all three. Our Sussex lab does — this article explains what the process actually involves, what £30 USB capture dongles cannot recover from a D-VHS tape, and what to do if your own HR-DVS1 has stopped working.
Key takeaways
- D-VHS is a digital HD format on a VHS shell. It records a 28.2 Mbps MPEG-2 transport stream in HS mode (1080i HD) and is read by a tiny number of decks: the JVC HR-DVS1 (broadcast-grade), JVC HM-DH30000 and HM-DH40000 (UK domestic, last sold around 2007), and the Mitsubishi HV-HD2000.
- The HD layer can only be preserved over i.LINK (IEEE-1394). If you record D-VHS through the deck's component, S-video or composite outputs you have already converted HD to analogue — no later step can put the original bits back.
- D-Theater commercial titles are DTCP-encrypted. If the tape has the holographic D-Theater sticker (Hollywood films sold pre-Blu-ray) it cannot be lawfully digitised — even with i.LINK the bits stay encrypted. Self-recorded D-VHS tapes are not affected.
- UK pricing. EachMoment digitises D-VHS at our standard video-tape rate — £14.99 per tape, falling to £8.99 at 1,000-tape archive volume, with a further 10% early-bird discount if the Memory Box is returned within 21 days. The price covers both capture paths plus the per-tape error report.
- If your own HR-DVS1 has died, do not pay to repair it. Spare head drums are no longer in production. Send the tape to a lab that still has a working deck on hours-logged duty.
Why D-VHS is different from VHS, S-VHS and HDV
D-VHS — JVC's "Data VHS" / "Digital VHS" — was launched in 1998 and dropped quietly around 2007 when Blu-ray took over the high-definition consumer market. It looked and loaded like a VHS tape but stored a digital stream rather than an analogue video signal. The high-speed (HS) recording mode wrote 1080i HD video at a transport-stream bitrate of 28.2 Mbps, which is roughly the bitrate of a US broadcast ATSC channel — at the time, more than any consumer optical disc could carry.
That matters for digitisation in three specific ways:
- You cannot meaningfully "capture" D-VHS through a USB dongle. The signal on the tape is a digital MPEG-2 transport stream, not a video signal. The deck has to demodulate it and either output the resulting digital file over IEEE-1394 (i.LINK), or decode it internally and re-output it as analogue video over component, S-video or composite. Sending the analogue side to a USB capture stick re-encodes it as a generic SD or 1080i stream and discards everything that made D-VHS worth using in the first place.
- The HR-DVS1's internal TBC is bypassed in HS mode. An analogue safety capture from a D-VHS deck therefore needs an external time-base corrector to prevent head-switching jitter from being recorded as dropped frames.
- The decks have effectively zero installed base. Funai stopped making VHS mechanisms in July 2016 and the D-VHS-capable JVC and Mitsubishi decks were already discontinued nearly a decade before that. Head drums for the HR-DVS1 are not in production. Working units are now museum-grade resources.
What the UK search results are quietly missing
If you type "d-vhs to digital uk" into Google today, you mostly get pages about ordinary VHS conversion that do not mention D-VHS at all (Digital Converters, MEDIAFIX, tapestodigital), Amazon listings for £25 USB capture cards (which physically cannot recover the HD layer), and a Google AI Overview that recommends "a USB video capture card at home" as a viable option for D-VHS — it isn't, for the reasons above.
The few results that do name D-VHS describe it as "rare and expensive to maintain" but stop short of explaining the technical detail that determines whether the tape is rescued properly. Specifically: which output of the deck do you use? If you have a D-VHS tape from the 2000s sitting in a box right now, this is the single piece of information that will decide what comes back to you.
The three capture paths — and the one that actually preserves HD
For a self-recorded HS-mode D-VHS tape there are three plausible ways to get the contents onto a hard drive in 2026:
| Capture path | Mbps that reaches the file | HD layer preserved? | UK feasibility in 2026 |
|---|---|---|---|
| £30 USB dongle off composite | ~5 Mbps H.264 8-bit 4:2:0 | No — SD-only path | Easy but defeats the point of D-VHS |
| USB dongle off S-video | ~7 Mbps H.264 8-bit 4:2:0 | No — SD-only path | Easy but defeats the point |
| USB dongle off component (HD downsample) | ~12 Mbps H.264 8-bit 4:2:0 | Partial — HD geometry, re-encoded | Most DIY tutorials stop here |
| Component to 10-bit 4:2:2 v210 via DeckLink + TBC | ~200 Mbps uncompressed v210 | HD geometry, broadcast-grade safety | Requires a serviced D-VHS deck, an external TBC and a Blackmagic DeckLink |
| IEEE-1394 (i.LINK) MPEG-2 TS pull | 28.2 Mbps — the original bits | Yes — byte-identical | Requires the deck, a Texas Instruments TSB43AB23-class FireWire chipset, and a host OS that still talks to it |
This is the table almost no UK page publishes. The takeaway is short: only the i.LINK path preserves what was originally written to the tape. The DeckLink path gives you a broadcast-grade safety copy that will survive tape damage which interrupts the bitstream. Everything else throws the HD payload away.
JVC HR-DVS1 (D-VHS deck, broadcast-grade)
Primary playback — the deck JVC sold to studios and which still has working heads in our archive
Discontinued 2007 — last UK domestic D-VHS deck on shelves was JVC's HM-DH40000
- Reads STD (LP / SP equivalents) and HS (28.2 Mbps HD) D-VHS modes
- Backwards-compatible with S-VHS and standard VHS — same drum, switched heads
- Outputs: i.LINK (IEEE-1394) for the MPEG-2 TS bitstream, component Y/Pb/Pr, S-video and composite for analogue safety
- Built-in TBC engages only on SD playback — HS-mode HD bypasses it, so an external TBC is required for the analogue safety path
- Calibrated and serviced in-house; head-drum hours logged per session
DPS Reality time-base corrector (external)
Line-locks the analogue safety output before it reaches the capture card
Broadcast standard from the mid-90s; we still use the original units
- Frame-synchroniser, not a line-TBC — removes head-switching jitter that would otherwise drop frames in the capture
- Genlock to the DeckLink reference input — no half-line shift
- Required on D-VHS because the HR-DVS1's internal TBC is bypassed in HS mode
Blackmagic DeckLink Studio 4K (10-bit 4:2:2 capture card)
Captures the analogue safety output as uncompressed v210 at 1080i50
Current production
- 10-bit 4:2:2 v210 capture — ~200 Mbps written to disc, full chroma sampling
- Reference input genlocked to the DPS Reality output
- Parallel to the FireWire bitstream pull — two independent files per tape
Custom IEEE-1394 (i.LINK / FireWire) bitstream extractor
Pulls the original 28.2 Mbps MPEG-2 transport stream off the tape lossless
Built on a 2010-era Mac Pro with a Texas Instruments TSB43AB23 chipset (the one chipset that still talks to JVC D-VHS reliably)
- Records the MPEG-2 TS as a .ts file, byte-identical to what the deck reads
- Handles D-Theater DTCP-encrypted tapes only where the customer holds rights (commercial Hollywood D-Theater titles cannot be decrypted, see FAQ)
- Logs CRC errors per packet — visible in the per-tape report
FFmpeg + custom de-MPEG / re-wrap pipeline
Converts the .ts to your delivery format without re-encoding
In-house pipeline, FFmpeg 7.x
- MPEG-2 TS → MPEG-2 PS or H.264 master — lossless re-wrap when delivery target is .m2ts
- Optional re-encode to H.264 1080i50 25 Mbps for general playback, or ProRes 422 HQ for editing
- Topaz Video AI Proteus de-interlace + upscale to 4K available as a £4.99-per-tape add-on
Memory Box with QR tracking + 21-day return
How a damaged D-VHS tape gets from your house to our Sussex lab without further damage
EachMoment standard
- Pre-franked Royal Mail Tracked 48 return label, insured
- QR code per tape — you see when the HR-DVS1 reads it
- Box returned within 21 days = 10% early-bird discount, stacks with volume
- If we cannot read a tape, that tape is free (per-tape, not per-order)
What we actually do with a D-VHS tape

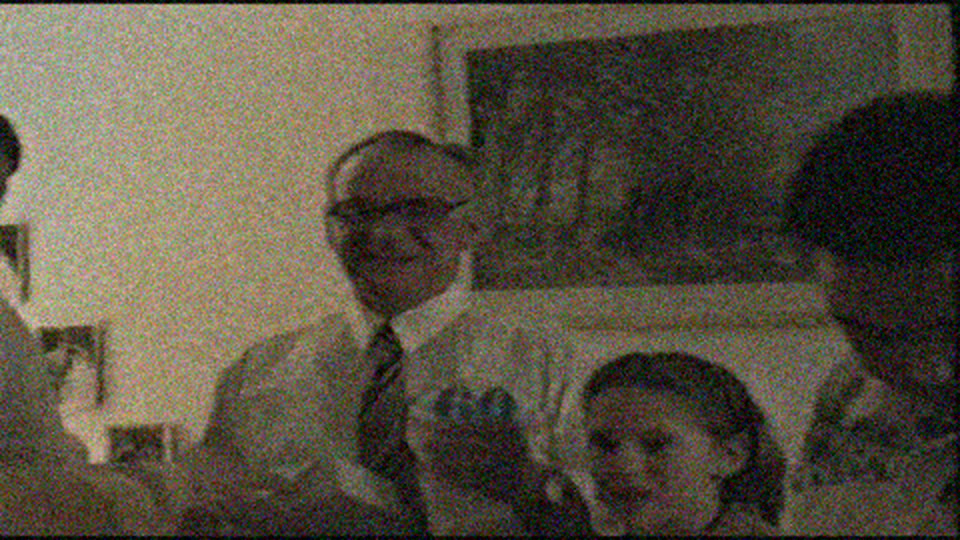

Our process for a single D-VHS tape that arrives in our Sussex lab in a Memory Box runs through three stations.
Both of our paths, side by side

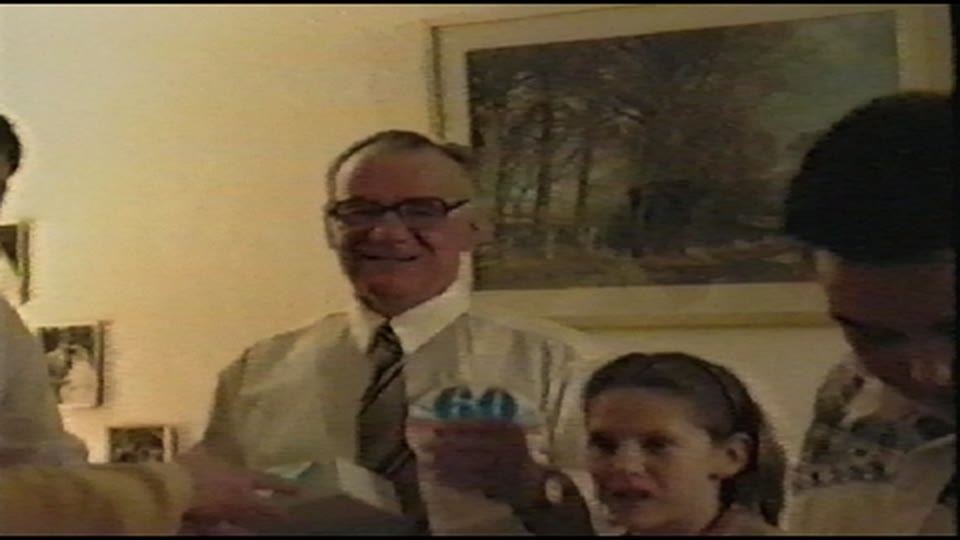

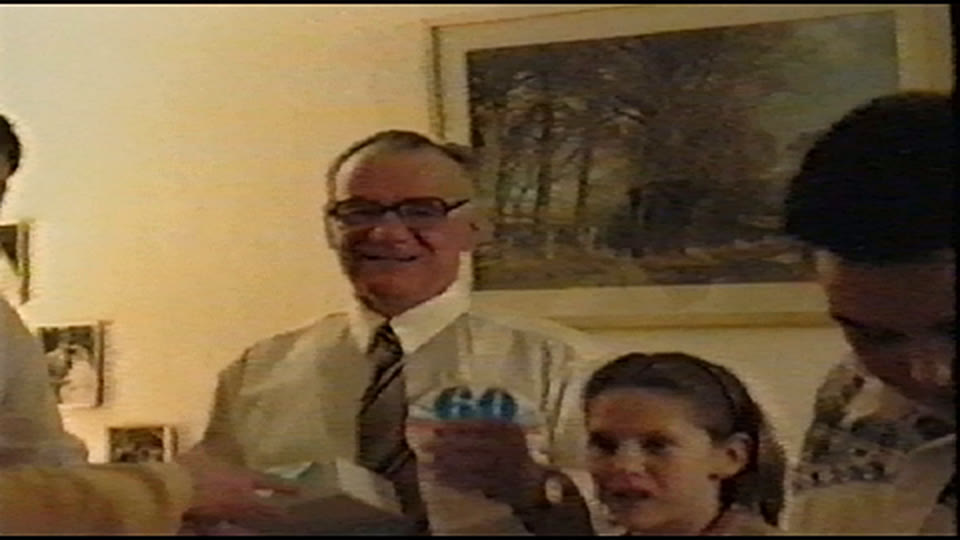

This is the same HS-mode HD tape captured two ways in the same session. The left side is the analogue safety pass; the right side is the i.LINK MPEG-2 transport stream pull. The difference is subtle when both work, but the right-hand file is the only one that is byte-identical to the original tape.
What to do if your own JVC HR-DVS1 has stopped working
This is the most common reason we receive D-VHS tapes in 2026. The deck was bought new around 2002–2004, used heavily for a few years, then stored — and when it was finally switched on again the tape was eaten, the head drum had seized, or playback came back as a blank screen with audio.
Three practical pieces of advice:
- Do not have it repaired locally. The HR-DVS1's head drum is the part that fails and replacement drums are not on the market. Any UK technician who quotes you for a "repair" without a part number for the drum is selling you a clean-and-realign service that may buy 10 hours of further use but cannot recover a worn drum.
- Do not try to play the tape in a standard VHS deck. The HR-DVS1 reads VHS and S-VHS through the same head drum, but the reverse is not true: a VHS deck cannot demodulate the digital signal on a D-VHS HS recording. You will see a blank or distorted picture and may damage the tape's lubricant layer if the deck's mechanical handling is rougher.
- Get the tape to a lab with a working HR-DVS1 on hours-logged duty. We log head-drum hours per session because the resource is finite — once our two serviced decks reach end of life there is no realistic replacement. That is the honest answer to "why is D-VHS digitisation niche" in 2026.
A note on D-Theater encryption
A small number of D-VHS tapes shipped between 2002 and 2006 were prerecorded D-Theater commercial titles — Hollywood films issued in HD on D-VHS before Blu-ray launched. They carry a holographic D-Theater logo on the spine. These tapes are DTCP-encrypted on the bitstream: even a clean i.LINK pull produces an encrypted .ts file.
Decryption is not lawfully available in the UK and we do not offer it. If you own a D-Theater title and want to watch it in HD today, the realistic path is to acquire the film on Blu-ray or 4K UHD; the disc industry has long since out-resolved D-Theater anyway.
Self-recorded D-VHS tapes (off air, off camcorder, off another deck) are not encrypted and are fully digitisable.
UK pricing for D-VHS digitisation
EachMoment treats D-VHS the same as any other video tape for pricing purposes: it goes through our VHS-to-digital service at £14.99 per tape, falling to £8.99 at archive volumes, with a further 10% early-bird discount if the Memory Box is returned within 21 days.
The price covers both capture paths (i.LINK bitstream + analogue safety) plus the per-tape error report. Topaz Video AI HD enhancement is available as a £4.99-per-tape add-on for tapes recorded in STD mode that the customer wants upscaled.
If you are unsure how many D-VHS tapes you actually have, our tape-identification guide covers the 8mm camcorder cluster; the D-VHS sticker on the spine and the JVC HM-DH40000 / HR-DVS1 deck model are the two most reliable D-VHS identifiers. Request a quote with photos of the spines — we will confirm format and HS-vs-STD mode before you ship anything.
Frequently asked questions
Can I digitise D-VHS at home with a USB capture card?
You can capture an SD or HD analogue signal from the deck's S-video, composite or component output to a USB capture card, but you will not preserve the original 28.2 Mbps MPEG-2 transport stream that defines D-VHS HD. The HD layer is only preserved through the deck's i.LINK (IEEE-1394) output, which a generic USB capture card does not accept. If you want a watchable copy and not an archival one, a £30 dongle will produce it; the original bits are then gone.
Is D-VHS the same as S-VHS or HDV?
No. S-VHS is an analogue format with about 400 lines of horizontal resolution. HDV is a digital HD format recorded onto MiniDV tape, not VHS. D-VHS is a digital HD format on a VHS-shaped shell, with 28.2 Mbps MPEG-2 transport stream as its high-quality recording mode. The JVC HR-DVS1 reads VHS, S-VHS and D-VHS through the same head drum.
What does the JVC HR-DVS1 do that a domestic HM-DH40000 does not?
Mechanically very little — both decks read STD and HS D-VHS modes, both output i.LINK and component. The HR-DVS1 was JVC's broadcast-grade unit with tighter tracking tolerances, balanced audio outputs and a more serviceable mechanism. In 2026 the practical difference is that our HR-DVS1s have a fuller service history and we maintain two of them on a rotation.
How do I tell HS-mode HD from STD-mode SD on a D-VHS tape?
On the spine, JVC labelled HS-mode recordings as "HS" and STD-mode as "STD". On a Mitsubishi tape look for "HD" vs "LP/SP". If the spine is blank the deck reports the mode on its front panel within a few seconds of playback starting. STD mode is digital SD at roughly 14 Mbps and is handled the same way as S-VHS by our chain; HS mode is the 28.2 Mbps HD mode that needs the i.LINK path.
Do you digitise commercial D-Theater Hollywood titles?
No. D-Theater tapes are DTCP-encrypted and we do not offer decryption. Self-recorded D-VHS tapes (off air, off camcorder, off another deck) are not encrypted and are fully digitisable.
What format do you deliver?
An MPEG-2 transport stream (.ts) archival master with the original bitstream preserved, plus an H.264 1080i50 25 Mbps access copy for everyday playback. Optional re-wrap to MPEG-2 program stream or ProRes 422 HQ for editing on request, at no extra cost. We also keep the 10-bit 4:2:2 v210 analogue safety capture for 90 days in case the bitstream file develops a problem in your hands.
How long does it take?
D-VHS digitisation runs at real time — a 4-hour HS-mode HD tape requires 4 hours of deck-drum time, plus around 30 minutes of intake, alignment and verification. Memory Box turnaround is 21 days from receipt for standard orders; D-VHS is processed in the order it arrives.
Next steps
If you have one or more D-VHS tapes sitting in a cupboard — particularly self-recorded off Sky HD trials, family camcorder transfers, or off-air HDTV captures from 2002–2006 — they will not get any easier to read with time. Two of the four UK labs that quoted D-VHS in 2020 no longer list it; the head-drum pool is finite.
Get a free quote, send the tape in a Memory Box, and we will give you back the original MPEG-2 transport stream plus an everyday playback file. If the tape cannot be read, that tape is free.
