Hi8 Camcorder Tape Door Won't Close: Unjamming the Carriage Safely
Maria C
· Maria C, media preservation specialist at EachMoment
When a Hi8 camcorder tape door won't close, the motorised carriage has not drawn the cassette down onto the reel spindles. The usual causes are a cassette that is not fully seated, a loop of slack tape, no power, a condensation (DEW) lock, or a worn loading belt or gear. Do not force the lid: the cassette carriage is lowered by a motor, and pushing against it by hand bends the mechanism and can crease or snap the tape.
Hi8 tape is only 8 mm wide and very thin, so one forced close can ruin the exact minute of footage you were trying to watch. This guide comes from our UK lab, where jammed and creased 8mm cassettes arrive every week. It shows how the door is meant to close, how to diagnose which of five faults you have, and how to free the carriage without damaging the tape.
Key takeaways
- The cassette carriage on a Hi8 camcorder is lowered by motor, not by hand. Press the PUSH mark, let the carriage lower itself, and only then shut the outer lid.
- Most doors that won't close have a cassette sitting on the guide pins, slack tape hanging out, or no power reaching the loading motor.
- Run the camcorder from its mains adaptor, clear any DEW warning, and wind slack tape back into the cassette before trying again.
- Test the mechanism with a blank tape you don't care about, never with your only copy of a family recording.
- If the motor whirrs or grinds, stop after two attempts and do not risk an irreplaceable tape in that camcorder.
- A jammed camcorder rarely means lost footage: in our census of 168 8mm cassettes, 89% of tapes that arrived as "won't play" were recovered on lab equipment.
Carriage stuck in the UP position
Cassette not seated
Most common cause
- Cassette sitting on top of the guide pins
- Press the PUSH mark on the cassette, not the door
- Never press the door itself
Door shuts, springs back open
Wrong or damaged cassette
Video8 vs Digital8 vs MiniDV mix-ups
- Check the cassette is 8mm (95 x 62.5 x 15 mm)
- Look for a raised label or cracked shell
- Lid flap must be free
Tape loop hanging out
Slack tape
After a power cut or drop
- Tape caught between carriage and drum
- Release the reel brake, wind slack in gently
- Never close over a loop
Motor whirrs, carriage won't drop
Worn gear or loading belt
Typical on 1990s camcorders
- Stop after two attempts
- Repeated cycling tightens the tape
- Needs a workshop or lab
Grinding, clicking or a smell
Broken or sticky tape
Old or damp tapes
- Stop immediately
- Do not play mouldy tape
- A lab can splice the tape
How a Hi8 tape door is meant to close
On Hi8, Video8 and Digital8 camcorders, the tape door covers a cassette carriage (also called the cassette holder). On some models the lid and carriage move as one unit; on many Sony Handycams they are separate, with an outer lid that you close by hand once the carriage has gone down. When you slide the OPEN/EJECT switch, a small motor lifts the carriage up and out of the body. You then push the cassette into the holder, window side out and the tape's protective flap facing inwards.
The closing step is the one people get wrong. Most Sony Handycam models print a small PUSH mark on the lid. Pressing that mark tells the camcorder the cassette is in place, and the motor lowers the carriage onto the reel spindles and guide pins. Only when the carriage is fully down will the lid latch. If you press the lid or the carriage down as if it were a car boot, you push against the gear train that is trying to move the carriage. The lid will either spring back up or, worse, be forced down at an angle.
Because the movement is motor-driven, the camcorder needs power to close as well as to open. A flat battery leaves the carriage stranded in the up position with the door hanging open.
Five reasons the tape door won't close
1. The cassette isn't seated in the carriage
This is the most common cause. If the cassette sits on top of the holder instead of inside it, the carriage cannot drop and the lid stops a few millimetres short. Remove the cassette and push it straight in until it sits flat, then press PUSH. Push on the cassette's back edge, not its window.
2. The wrong cassette, or a damaged one
All 8mm cassettes measure 95 x 62.5 x 15 mm, so Video8, Hi8 and Digital8 tapes physically fit a Hi8 camcorder. A MiniDV cassette is smaller and will not seat. Raised or peeling labels, a cracked shell or a cassette flap that has stuck half open can also stop the carriage from lowering. Our intake census found that 22% of cassettes customers labelled as one 8mm format were actually another, so check what is printed on the shell itself.
3. A loop of slack tape is in the way
After a power cut, a drop or an earlier jam, a loop of tape can hang out of the bottom of the cassette. When the carriage tries to lower, the loop catches between the holder and the head drum. Closing the door over a loop is the single fastest way to crease or snap Hi8 tape.
4. No power, or a DEW lock
A flat or ageing battery cannot drive the loading motor. If a camcorder comes from a cold loft into a warm room, condensation forms on the head drum and the camcorder shows DEW or a water-drop icon, then locks the mechanism until it dries. Both look like a door that refuses to close.
5. A worn belt, cracked gear or bent carriage
If you hear the motor run but the carriage doesn't move, the rubber loading belt has stretched or a plastic mode gear has cracked. Both are typical on camcorders from the 1990s. A carriage that sits visibly crooked has usually been forced shut at some point and has a bent arm. These faults need a workshop, not more attempts.
Unjamming the carriage safely, step by step
- Stop pushing the door. Every extra push loads the gears and the tape. Take your hand off the lid before you do anything else.
- Connect the mains adaptor. Remove the battery and run the camcorder from its AC adaptor, so the loading motor has full power.
- Clear any DEW warning. If DEW or a water-drop icon shows, leave the camcorder at room temperature for one to two hours, with the cassette compartment open if it will open. Do not use a hairdryer.
- Open the carriage fully with EJECT. Slide OPEN/EJECT and let the carriage rise to its highest position. If it won't rise at all, follow our guide for when your camcorder won't eject the tape.
- Inspect the cassette. Lift it out and look underneath. Check for a loop of tape, a stuck flap, a peeling label or a crack in the shell.
- Wind slack tape back in. 8mm cassettes have reel brakes, so first press the small brake-release point on the underside of the shell. Then turn one hub gently with a small hex key or a thin screwdriver until the loop is drawn back inside. Never pull the tape by hand; a crease is permanent.
- Test with a sacrificial blank tape. Insert a blank or unimportant 8mm cassette, push it fully into the holder, then press PUSH and let the motor close the door. If it closes and opens cleanly twice, the mechanism is working.
- Stop after two failed attempts. If the motor whirrs, clicks or grinds without the carriage moving, the camcorder needs repair. Do not put an irreplaceable tape into it.
What not to do
- Never close the door over a visible loop of tape.
- Never lever the carriage with a screwdriver or a knife.
- Never spray WD-40, oil or contact cleaner into the transport. It attracts dust and ends up on the heads and tape.
- Never keep cycling a precious tape in a camcorder that has already chewed one.
- Never play a tape with visible white spots or a musty smell. Mould spreads to the heads and to every tape played afterwards.
When the tape is already damaged
If the door was forced over a loop, the tape is often creased along its length or folded at the edge. A crease cuts across the helical tracks, so it shows as bright white dropout streaks and a jumping picture for every second it passes the heads. A snapped tape stops playback entirely, but the footage on either side of the break is usually intact.
At our lab we treat these tapes as a rescue job rather than a straight transfer. Technicians wind slack back under controlled tension, relax creases before playback, and splice snapped tape with archival splicing tape. Where the cassette shell is cracked or the flap is broken, the tape is moved into a new 8mm shell. The tape is then played on a serviced Hi8 deck, not a camcorder, so a tired transport cannot damage it further.
Why the camcorder is the wrong machine to rescue the footage
A carriage that won't close is rarely the only worn part in an old camcorder. The same tired transport that jams the door also gives unstable playback. Video8 and Hi8 have no linear control track; they rely on ATF (Automatic Track Finding) pilot tones recorded inside the helical tracks, so any wobble in the transport shows up directly as jitter.

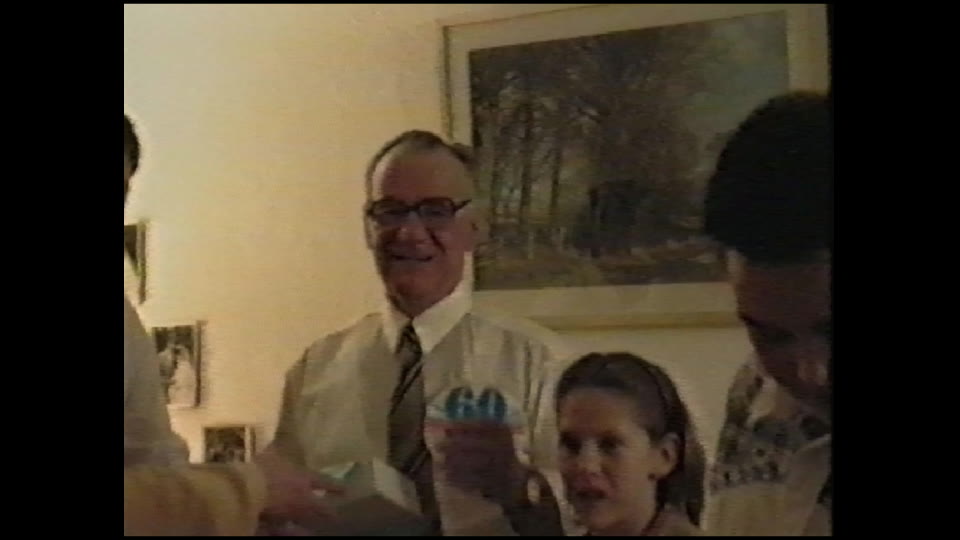

We measured this on our own lab intake. Across a census of 168 Hi8, Video8 and Digital8 cassettes from family camcorder archives, we compared playback through the customer's original camcorder with our lab chain: a Sony EVO-9650 Hi8 deck with S-Video output, a dedicated time base corrector (TBC) and dropout compensation.
| Playback chain | Effective horizontal lines (median) | Visible dropouts or jitter events per minute (median) |
|---|---|---|
| Original camcorder, composite out + USB capture | ~268 | 19 |
| Lab Sony EVO-9650 deck + TBC | ~392 | 2 |
Hi8 can resolve around 400 horizontal lines, against about 240 for Video8, so the camcorder chain throws away much of what made Hi8 worth buying when Sony launched it in 1989. The same census shows the scale of the problem: 71% of 8mm orders arrived without a working playback machine, and 89% of cassettes sent in as "won't play", "camera dead" or "suspected blank" were recovered as playable footage.
Repair the camcorder or send the tapes?
Repair makes sense if you shoot new footage on the camcorder or it has sentimental value as an object. If you only want to watch the tapes again, a repaired 1990s camcorder still plays them through a consumer transport, without time base correction.
- Fix it yourself if the problem was a seating error, a slack loop or a flat battery, and a blank tape now closes cleanly.
- Use a workshop if you want to keep using the camcorder and the motor whirrs or grinds.
- Send the tapes if a tape is creased, snapped or still trapped, or if the recordings matter more than the machine.
Our Hi8 to digital conversion costs £14.99 per tape, falling to £8.99 per tape with volume discounts, and optional AI enhancement is £4.99 per item. Repairs to damaged tape are part of the service. If the cassette is stuck inside, send the whole camcorder and we will remove the tape on the bench. Mixed boxes of Hi8, Video8, Digital8 and MiniDV go through the same camcorder tape digitising service, and you can get a quote for your Memory Box in a couple of minutes, with tracked delivery to you and back to our lab.
Door still won't close, or the tape is creased?
Order a Memory Box, pack the cassette (or the whole camcorder) as it is, and our lab frees, repairs and digitises the tape.
Digitise my Hi8 tapes →Frequently asked questions
Why won't my Hi8 camcorder tape door close?
The motorised carriage has not lowered the cassette onto the reel spindles. The cassette is usually not fully seated, a loop of slack tape is catching, the camcorder has no power or a DEW lock, or the loading belt or gear is worn. Press the PUSH mark and let the motor lower the carriage before closing the lid, and never lever it.
Can I close the tape door without power?
On almost all Hi8 camcorders, no. The carriage is lowered by a motor, so the door needs power to close as well as to open. Connect the mains adaptor instead of relying on an old battery. Forcing the lid down without power bends the carriage arms and can crease the tape.
Is it safe to push the tape door shut by hand?
Only the outer lid, and only after the carriage has gone down. Press the PUSH mark first, which signals the motor to lower the carriage. Pressing the carriage or lid down against the motor pushes against the gear train, can strip plastic gears, and traps any slack tape between the carriage and the head drum. If the lid springs back, remove the cassette and check it.
Can a Hi8 tape snapped in the door be repaired?
Yes. A snapped or creased Hi8 tape can usually be spliced and, if the shell is damaged, moved into a new 8mm cassette shell. Expect a second or two of picture break-up at the join while the heads re-lock; the rest of the recording plays normally. Do not join it with household sticky tape, which leaves adhesive on the video heads.
Will a Video8 or Digital8 tape fit a Hi8 camcorder?
Yes, all three use the same 95 x 62.5 x 15 mm cassette, so they fit. A Hi8 camcorder plays Video8 recordings, but it cannot play a tape recorded in Digital8. A MiniDV cassette is smaller and will never seat, so the door will not close on it.
How much does it cost to digitise Hi8 tapes in the UK?
EachMoment digitises Hi8 tapes from £14.99 per tape, falling to £8.99 per tape with volume discounts. Optional AI enhancement costs £4.99 per item. Repairs to creased or snapped tape are included, and you can send a jammed camcorder with the cassette still inside.
