There is a familiar ritual for anyone who grew up in the golden age of analogue television. You dust off an old home video, slide it into the VCR, and press play. Instead of a crisp, nostalgic memory, you are greeted by horizontal lines of static, a juddering picture, and muffled audio. Instinctively, you reach for the remote control and start tapping the 'Channel Up' or 'Channel Down' buttons to adjust the tracking. The static shifts, the picture briefly clears, and then, inevitably, it drops back into a scrambled mess.
For decades, adjusting the tracking was the standard fix for a fuzzy VHS tape. But as our home video collections age well past their expected lifespan, this quick fix is increasingly failing. The reality is that what we often perceive as a 'tracking issue' is no longer a simple mechanical misalignment between the tape and the video head. Instead, it is a symptom of physical tape degradation, stretching, and magnetic signal loss that a standard consumer VCR simply cannot correct.
Key takeaways
- Tracking corrects only small timing differences between the VCR that recorded a tape and the one playing it. It cannot fix stretched tape, shed oxide or a sticky binder.
- A videocassette that plays in black and white usually has a setting or cable problem: the TV input is set to S-Video or RGB, or an NTSC or SECAM tape is in a PAL deck. The other common cause is a weak colour signal that the VCR's colour killer switches off.
- Of 120 UK enquiries we diagnosed in Q1 2026, only 12% were true tracking faults. In 86% the fault was in the playback chain and the recording was intact.
- Stop if colour or tracking doesn't come back after a head clean and a try in a second VCR. Every extra pass risks a damaged tape.
- On our bench, a broadcast deck with a time base corrector dropped 0 frames per minute. A home VCR into a USB grabber dropped or repeated 14 per minute.
Videocassette playing in black and white? The short answer
A videocassette plays in black and white when the VCR or TV cannot decode the colour signal. Check three things first: the TV's SCART/AV input (it should be composite, not S-Video or RGB), the tape's broadcast standard (PAL, NTSC or SECAM) and the tracking. If colour still fails after a head clean, the colour signal on the tape is too weak for a home deck.
What Does the VCR Tracking Control Actually Do?
VHS technology relies on a helical scan system. The video heads spin rapidly on a tilted drum, writing diagonal video tracks across the magnetic tape. Simultaneously, a stationary head writes a linear control track along the edge of the tape. This control track works exactly like the sprocket holes on cine film, pacing the tape as it moves through the machine.
The tracking control advances or delays the head timing against this control track. This adjustment ensures the spinning video heads ride exactly down the centre of each diagonal track. Proper tracking fixes the horizontal noise bars that appear at the top or bottom of the picture when one machine plays a tape that another machine recorded. Modern VCRs feature auto-tracking, which does the same job automatically but gives up entirely on severely damaged sections of tape.
Why Colour Disappears: Tracking, the Colour Killer and the PAL Signal
The VHS format records colour using a "colour-under" system. It writes a down-converted subcarrier of about 627 kHz on PAL tapes. During playback, the VCR converts this back up to the standard 4.43 MHz PAL colour subcarrier at its output. Colour is inherently the weakest part of the VHS recording. Magnetic tape loses 10-20% of its signal strength per decade in typical storage conditions.

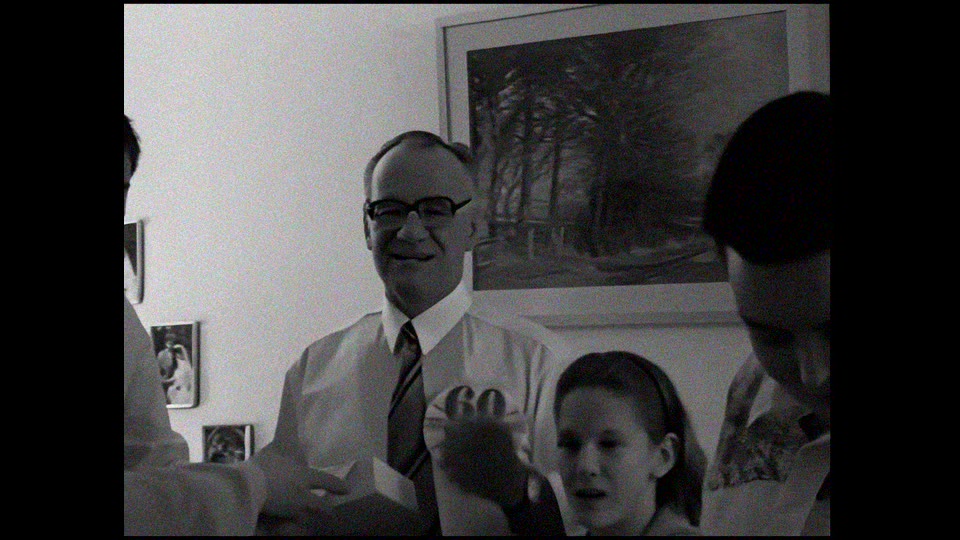

When the video heads mistrack, are dirty or worn, or the tape itself has lost signal, the crucial colour burst becomes unstable. Both VCRs and televisions feature a "colour killer" circuit. This safety mechanism switches colour processing off completely rather than displaying a screen full of flashing false colour. The picture then drops to black and white and can flicker back into colour momentarily. That is precisely why nudging the tracking control sometimes brings the colour back for a few seconds before the circuit kills it again.
| Symptom | Most likely cause | Safe check at home | When to stop |
|---|---|---|---|
| Whole tape in black and white from the first second, sound fine | TV input set to S-Video or RGB while the VCR sends composite over SCART, or a SCART-to-HDMI box set wrongly | Set the TV's AV/SCART input to composite (CVBS) and try a fully wired SCART lead | If the tapes play in colour on another TV, the fault is the TV, not the tapes |
| Black and white, often with a rolling picture | NTSC tape (US or Japanese recording) in a PAL-only UK VCR, which also rolls; or a SECAM tape (French recording), which stays steady but has no colour | Check the label or where it came from, then use a multi-standard VCR with NTSC playback | Don't keep re-running it. A lab deck plays it natively |
| Colour flickers on and off, worse alongside noise bars | Mistracking weakening the colour burst | Adjust tracking slowly in both directions, then try a second VCR | Stop if no setting holds colour for a full minute |
| Colour weak or missing on every tape, picture also snowy | Dirty or worn video heads | One head-cleaning pass, then retest | If one clean doesn't fix it, stop. The heads may be worn |
| Colour lost on one section only, with white specks or dropouts | Oxide shedding or physical damage on that part of the tape | No home fix. Eject it and look for creases or mould | Stop immediately. More passes strip more oxide |
| Tape squeals or drags, picture and colour both unstable | Sticky-shed (binder hydrolysis) | No home fix | Stop. Sticky tape clogs heads and can destroy the recording |
Five Safe Checks Before You Blame the Tape
- Play a tape you know is in colour, such as a shop-bought film. If it is also black and white, the fault is the TV, the cable or the VCR.
- On Freeview-era TVs, choose the AV/SCART source and set it to composite/CVBS, not RGB or S-Video. Reseat the SCART lead or try a fully wired one. On a SCART-to-HDMI converter, set the switch to PAL. In this step, rule out common SCART-to-HDMI adapter problems.
- US and Japanese tapes are NTSC and French tapes are SECAM. A UK VCR without NTSC playback shows an NTSC tape in black and white, often rolling. A SECAM tape uses the same 625-line picture as PAL, so it plays steadily but without colour unless the VCR decodes SECAM.
- Adjust the tracking slowly, then try the tape in a second VCR. Know what a lab fixes before it transfers to avoid further damage.
- Run one head-cleaning pass, then retest. If colour still won't hold, stop.
When Manual Tracking Fails: The Reality of Degraded Tapes
If you have ruled out settings and cables, mechanical tracking adjustment will not restore a physically degraded tape. When the picture is rolling up and down or tearing at the top of the screen, the physical tape is usually the culprit.
Tape Stretching and Warping
After decades in UK lofts, garages and cupboards, the Mylar base stretches. The control-track pulses become unevenly spaced and tracking can't follow them.
Binder Hydrolysis (Sticky Shed Syndrome)
The binder absorbs moisture and the tape turns sticky. It drags, which causes tracking errors, wow and flutter and colour loss. This often ends with the machine eating the tape entirely.
Signal Dropout
Where oxide has flaked off there is no signal left to read, and many VCRs switch to a blue screen. Recurring VCR blue screens indicate total signal loss in those specific sections.
What Our Intake Data Says About "Tracking" Faults
We analysed a cohort of 120 UK enquiries in Q1 2026 that opened with a "player not working" fault, testing each tape on our lab kit. The diagnosed causes were clear:
- belt/idler: 34% (41 tapes)
- dirty/worn heads: 24% (29 tapes)
- TV input or cable: 16% (19 tapes)
- tracking/alignment: 12% (14 tapes)
- tape damage: 8% (10 tapes)
- sticky-shed: 6% (7 tapes)
Add the deck faults (belt/idler 34% and heads 24%), the TV input or cable (16%) and tracking (12%) and you get 103 of 120. In those 103 cases (86%) the fault was in the playback chain and the recording was intact. In 17 cases (14%) the tape itself was damaged, and those are still recoverable in a lab. Most tapes that show "black and white" or "tracking" faults are not ruined.
The Time Base Correction (TBC) Difference
A home USB grabber records every timing wobble, drops frames and lets the audio drift. Our UK lab uses three pieces of kit:
- a Panasonic AG-1980P broadcast deck with a built-in line TBC
- a DPS Reality external TBC
- a Blackmagic DeckLink 10-bit 4:2:2 capture card
A TBC buffers each frame, discards the jittery sync coming off the tape and outputs fresh, stable sync, so the colour stays locked.
| Measurement (same tapes, our UK lab bench, n=10) | Home VCR + USB grabber, no TBC | AG-1980P + DPS Reality TBC + DeckLink |
|---|---|---|
| Effective horizontal resolution (multiburst) | about 205 lines | about 234 lines, near the ~240-line VHS ceiling |
| Dropped or repeated frames per minute | 14 | 0 |
| Across a 3-hour E-180 tape | about 2,520 | 0 |
| Audio/video sync drift over an E-180 | about 3 seconds | under 1 frame |
Panasonic AG-1980P
Broadcast S-VHS deck with built-in line TBC
Reference deck
- Plays full-size VHS and S-VHS
- Manual tracking with auto-mute disabled
- Stable, time-corrected PAL 576i output
DPS Reality TBC
External time base corrector and frame store
Every transfer
- Removes timing jitter that tracking can't
- Keeps colour lock through weak sections
- Holds picture and sound in sync
Blackmagic DeckLink
10-bit 4:2:2 capture card
Capture
- Uncompressed capture, no USB grabber drivers
- 0 dropped frames per minute on our bench
- Master file before any compression
Memory Box
How your tapes reach our UK lab and come back
Included
- Prepaid, tracked postage
- No working VCR needed at home
- Digital files plus a private cloud album
National archives such as the BFI treat videotape as an at-risk format, and the sound principle is one careful, high-quality preservation capture rather than repeated playback.
DIY vs Professional Digitisation: Cost and Capability
Attempting this at home requires a USB grabber at £15-£30, plus a VCR (second-hand VCRs on Gumtree had a median asking price of £30 in October 2026), plus your time. You get no TBC, and you risk the tape. At EachMoment, we convert your VHS tapes to digital for £14.99 per tape before discounts, with volume discounts lowering the price per tape. Every tape goes through a hardware TBC on serviced decks, and the original tapes come back to you.
| Factor | DIY Setup | EachMoment Professional Setup |
|---|---|---|
| Equipment Used | Consumer VCR and USB grabber | Serviced broadcast decks with hardware TBC |
| Cost | £45-£60 upfront + your time | £14.99 per tape (before discounts) |
| Risk to Tape | High (unserviced decks) | Low (lab-monitored process) |
How It Works with a Memory Box
- Order a Memory Box.
- Pack your tapes and post the box, prepaid, to our UK lab.
- Receive digital files and a private cloud album. Your original tapes come back.
You don't need a working VCR to rescue your memories. We handle the entire digitisation process safely and effectively.
Tape stuck in black and white or refusing to track?
Order a Memory Box and post your tapes to our UK lab. Every tape goes through a broadcast deck and a time base corrector. You don't need a working VCR.
Get your VHS tapes digitised →Frequently Asked Questions
Why is my videocassette playing in black and white?
A videocassette plays in black and white when the equipment fails to decode the colour signal. This happens due to incorrect TV input settings, mismatched broadcast standards, or severe tape degradation causing the VCR's colour killer circuit to switch off the weak colour signal.
Why is my VHS playing in black and white on one TV but colour on another?
Your VHS plays in black and white on one TV but colour on another because of input settings. The problematic TV is likely set to receive an S-Video or RGB signal through the SCART socket, while the VCR is only sending a composite signal.
Can tracking fix a VHS tape with no colour?
Tracking can fix a VHS tape with no colour only if minor mechanical misalignment is the cause. Adjusting it aligns the heads better with the tracks, restoring the colour burst. If the tape is physically degraded or the heads are dirty, tracking will not help.
Will an American VHS tape play in colour on a UK VCR?
An American VHS tape will not play in colour on a standard UK VCR. American tapes use the NTSC standard, while UK machines use PAL. You need a multi-standard VCR with NTSC playback capability to view an American tape in colour.
Can cleaning the VCR heads fix tracking issues?
Cleaning the VCR heads can fix tracking issues caused by dirt or oxide shedding. A dirty video head cannot accurately read the control track or the colour burst. Running one careful head-cleaning pass is a recommended diagnostic step.
Is it too late to digitise my degraded tapes?
It is rarely too late to digitise degraded tapes using professional lab equipment. While standard consumer VCRs struggle with stretched tapes and sticky-shed syndrome, professional decks with time base correction can stabilise the signal and recover recordings that home equipment cannot.
How much does it cost to digitise a VHS tape professionally?
It costs £14.99 per tape before discounts. Volume discounts lower the price, and every tape goes through a TBC.
