VHS Tracking Lines, Static and Dropout: What a Lab Fixes Before It Transfers
Maria C
By Maria C, Media Preservation & Heritage Specialist at the EachMoment UK lab · Last updated October 2026
VHS tracking lines are the fuzzy horizontal bands and static that appear when a VCR's playback heads can't line up with the magnetic tracks recorded on the tape. Correct tracking on a clean, well-aligned deck clears the bands; a time base corrector (TBC) applied at capture then removes the timing jitter and line-tear a capture card would otherwise record.
Static (snow) and dropout (white or black dashes) look similar but have different causes. Of 120 UK tapes whose owners reported tracking lines or playback faults in Q1 2026, 103 (86%) played in full on our lab chain without repair, so in most cases the problem was the home playback chain, not the recording.
Key takeaways
- Tracking lines come from heads not lining up with the recorded tracks; static usually from dirty or worn heads; dropout from missing oxide on the tape. Each needs a different fix.
- Tracking buttons and a wet head clean improve the picture on a home deck. A £30 USB grabber has no time base correction, so the remaining jitter and frame slips are recorded into the file.
- Correct tracking clears the bands; time base correction removes timing faults. On our 10-tape bench the lab chain dropped or repeated 0 frames per minute, against 14 on a USB grabber.
- Of 120 UK tapes reported with tracking lines or playback faults (Q1 2026), 103 (86%) had an intact recording, and 89 (74%) were attributed to the player or TV alone (self-selected sample; causes inferred from symptoms).
- Muffled sound on 1980s VHS is often the linear mono track (about 100 Hz to 10 kHz at best, less on slower UK tapes); VHS Hi-Fi stereo was introduced in 1984.
What tracking lines, static and dropout actually are
Tracking lines, static and dropout are three different faults with three different fixes. People use the words interchangeably, but one is an alignment problem, one is usually dirt or wear in the player, and one is missing magnetic coating on the tape. This table separates them.
| Fault | What you see | Usual cause | Moves when you adjust tracking? | Fixed for viewing by | Removed from a digital transfer by |
|---|---|---|---|---|---|
| Tracking lines | Fuzzy horizontal bands, worst at top or bottom | Heads not lined up with recorded tracks | Yes | Tracking buttons / auto-tracking re-lock | Correct tracking on a serviced, aligned deck clears the bands; a TBC then removes timing jitter and line-tear |
| Static and snow | Grain or snow across the picture, flicker at the bottom edge | Dirty or worn heads, oxide shedding (a flicker on the bottom few lines is normal head-switching, hidden by TV overscan) | No | Wet head clean | Clean heads on a serviced lab deck; a TBC steadies what remains |
| Dropout | Brief white or black horizontal dashes | Oxide missing or tape creased | No | Nothing — the signal is gone | Dropout compensation at playback masks it; damaged sections cannot be rebuilt in full |
How to fix VHS tracking lines for watching
These steps fix watching on a TV, not a digital transfer.
- Re-lock auto-tracking. Stop the playback, rewind the tape a few seconds, and press play again to force the deck to re-analyse the control track.
- Use manual tracking. Press the dedicated tracking buttons on the front panel, or use the channel up and down buttons on your remote control while the tape plays to centre the picture.
- Clean the heads properly. Unplug the machine first, then perform a wet clean using isopropyl alcohol and chamois swabs; avoid repeated use of abrasive dry cleaning cassettes.
- Check the player, not just the tape. A slipping belt or idler tyre makes every tape look faulty. Try a second tape, and try a different TV input and cable to isolate the hardware.
- Play LP tapes on a deck that supports LP. Long Play records narrower tracks, and a deck without LP playback cannot follow them.

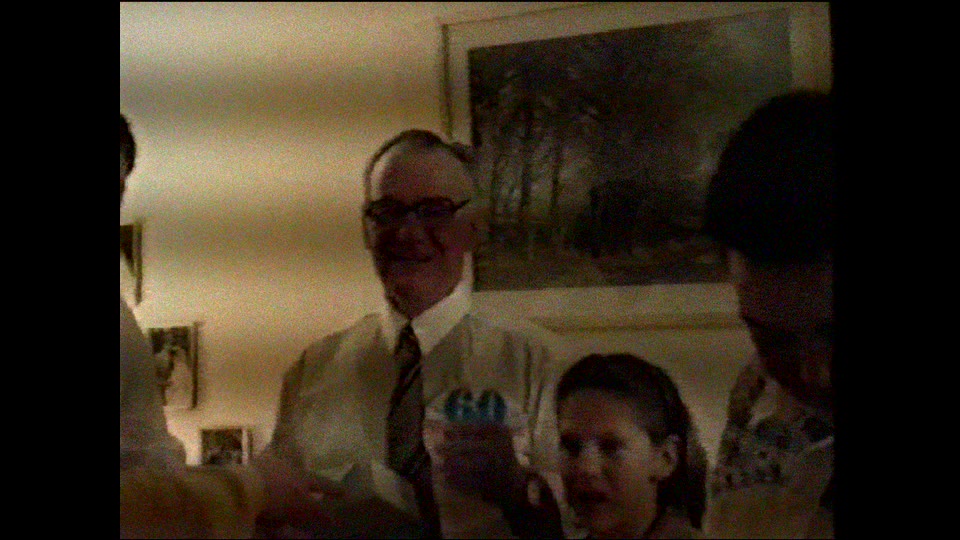

These fixes have a ceiling. Whatever wobble, line-tear or static is left on screen gets baked into the file if you capture the tape through a cheap USB grabber, and a jumping picture cannot be un-wobbled afterwards. This highlights why manual tracking adjustment has a limit when attempting to digitise your own media.
Why tracking alone cannot fix a digital transfer
VHS hardware writes small timing errors into every line of video during the recording process. A CRT television follows the wobbling sync from line to line, so those errors stay mostly hidden. A capture card expects a steady, perfectly timed signal; when the timing slips, it drops or repeats frames and the sound drifts out of sync. A line time base corrector (TBC) inside the deck re-times every line. A frame-store TBC then holds each frame and sends it out against a stable reference before the picture is digitised. Tracking still matters: correct tracking on a clean, aligned deck is what clears the noise bands themselves, because they are lost signal from heads running off-track. The TBC then removes the timing jitter, line-tear and frame slips a capture card would otherwise record.
| Measure | Consumer VCR + £30 USB grabber (no TBC) | Lab chain (AG-1980 deck + TBC + 10-bit capture) |
|---|---|---|
| Horizontal luminance resolution, multiburst test (lines) | ~205 | ~234 |
| Dropped or repeated frames (per minute) | 14 | 0 |
| Dropped or repeated frames over a 3-hour E-180 (frames) | ~2,520 | 0 |
| Audio/video drift over a 3-hour E-180 (seconds) | ~3 | under 1 frame |
| Capture format (bit depth, chroma) | 8-bit 4:2:0, compressed in real time | 10-bit 4:2:2 uncompressed |
Domestic VHS resolves about 240 lines at best, so the lab chain recovers almost all the detail that is on the tape, while the grabber loses roughly an eighth of it before compression even starts. Dropped and repeated frames largely cancel out in running time, which is why the drift stays at seconds rather than minutes, but each one is a visible jump in the picture.
Most tapes with tracking lines have an intact recording
Lines on screen rarely mean a ruined tape. In Q1 2026 we looked at 120 UK enquiries where the owner reported tracking lines or a tape that would not play properly. When the tapes were played on our lab equipment, 103 of 120 (86%) had an intact recording, meaning they played in full on our lab chain without repair. From the symptoms owners described, the player or TV alone was the likely cause in 89 of 120 cases (74%). The breakdown of hardware faults was: belt or idler failures in 41 cases (34%), dirty or worn heads in 29 cases (24%), and TV input or cable faults in 19 cases (16%). A genuine tracking or alignment fault, the kind a TBC deck corrects at capture, accounted for 14 cases (12%). The tape itself was the root cause in only 17 of 120 cases (14%), split between physical tape damage (10 cases, 8%) and sticky-shed syndrome (7 cases, 6%).
In short: 86% intact counts every case where the recording itself was fine (player, TV and tracking faults together). 74% is the narrower share where the player or TV alone was to blame. Only 14% involved damage to the tape, and even those are often recoverable in a lab.
103 of 120 tapes (86%) had an intact recording that played in full on our lab chain without repair. 89 of 120 (74%) were attributed to the player or TV alone; 17 of 120 (14%) were a fault in the tape itself.
Source: EachMoment UK lab intake, Q1 2026, n=120 enquiries reporting tracking lines or a tape that would not play properly. Player and TV causes inferred from reported symptoms after the tape played cleanly on lab equipment. Self-selected sample.
When a tape "won't track", a technician works through the same checks every time: does the tracking control move the bands at all, what condition are the video heads in, is the tape tension right over the guides (slack tape mimics a tracking fault), and are the belts and idler tyre gripping. The practical message: do not bin a tape because it shows lines on one player.
Why 1980s VHS recordings sound muffled
Most home recordings from the early-to-mid 1980s were made on the linear mono track along the edge of the tape. This track reaches roughly 100 Hz to 10 kHz at best at Standard Play (SP), and less at Long Play (LP). UK PAL tapes also run slower than American NTSC tapes (2.339 cm/s at SP against 3.335 cm/s), which costs the linear track more treble. A dull, muffled sound is partly built into the format constraints of the era. VHS Hi-Fi was introduced in 1984 on higher-end decks, recording stereo sound with the rotating heads, underneath the picture signal. Hi-Fi gives roughly 20 Hz to 20 kHz and more than 90 dB of dynamic range, so a Hi-Fi recording played on the right deck sounds far fuller than anything on the linear track.
Muffled sound on playback also comes from mechanical degradation. A dirty or worn audio/control head loses treble first. Audio-head azimuth (the head angle) that does not match the deck that made the recording dulls the treble further. If a Hi-Fi tape is played on a mono deck, you only hear the linear track. Poor tracking on a Hi-Fi deck causes the machine to fall back to the linear track, meaning the sound dulls and the tracking lines appear together. A steady 50 Hz buzz is usually mains hum or an earth loop in the playback set-up; a buzz that comes and goes with tracking on a Hi-Fi tape is head-switching noise from mistracking, and the lab cures it by tracking the tape correctly or capturing the linear track instead.
A transfer lab plays Hi-Fi tapes on a Hi-Fi deck, captures both the Hi-Fi and linear tracks where both exist, and cleans the heads and checks alignment before playback. Restoration stays gentle, so voices stay natural rather than over-filtered. If a tape has no sound at all rather than dull sound, see our guide to VHS tapes with no sound at all.
What a UK lab does to each tape before it is transferred
- Inspect the shell, check tape tension and evaluate any existing splices.
- Wet-clean the deck's heads and tape path.
- Pick the right deck for the recording speed, which on UK PAL tapes means Standard Play (SP) or Long Play (LP).
- Play the tape through a line TBC and a frame-store TBC.

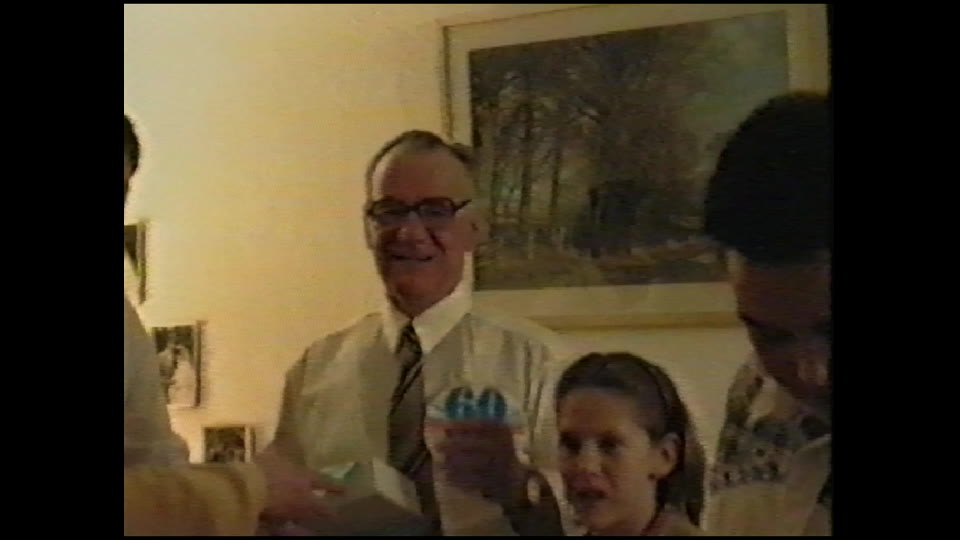

- Capture the analogue signal into a 10-bit 4:2:2 uncompressed digital format.
- Deliver an MP4 access copy, with the option of a preservation master.
A full 3-hour E-180 tape requires about 4.2 GB of storage as an H.264 MP4 access copy, and about 186 GB as a 10-bit FFV1 preservation master. Keeping an everyday access copy and a separate lossless master follows the principle used by archives such as the BFI National Archive. The full process is on our VHS to digital service page.
Panasonic AG-1980 series S-VHS deck
Reads the tape cleanly in the first place
Lab reference deck
- Built-in line time base corrector steadies a jittering, line-torn picture
- Plays both VHS audio tracks: Hi-Fi stereo and linear mono
- Serviced heads and transport, unlike a typical attic VCR
DPS time base corrector
Frame-store TBC applied before capture
Every transfer
- Rebuilds sync so the capture card does not slip frames
- Stops the picture tearing at edits and scene changes
- Lab chain bench result: 0 dropped or repeated frames per minute
Blackmagic DeckLink, 10-bit 4:2:2
Uncompressed capture card
Capture stage
- 10-bit 4:2:2 uncompressed, not 8-bit 4:2:0
- Keeps shadow detail and colour that real-time compression discards
- Feeds the MP4 access copy and the optional preservation master
£30 RCA-to-USB grabber
The usual DIY route
Consumer chain
- No time base correction, so wobble and line-tear go into the file
- Bench median: 14 dropped or repeated frames per minute
- About 3 seconds of audio/video drift over a 3-hour E-180
Head clean and tape inspection
Done before every tape is played
Per tape
- Wet-cleaned heads stop oxide build-up causing static and dull sound
- Shell, tension and splices checked before a fragile tape runs
- Right deck chosen for the recording speed (SP or LP)
Memory Box
How your tapes reach the lab and come home
Included
- Prepaid and tracked in both directions
- Every tape logged and tracked through the lab
- Order online, pack your tapes, post it
Frequently asked questions
Why does my VHS tape have tracking lines?
Tracking lines occur when the spinning video heads in your player do not perfectly align with the diagonal tracks recorded on the tape. This misalignment generates fuzzy horizontal bands across the screen. In our UK intake data the player or TV, not the tape, was the likely cause in 89 of 120 cases. Adjusting the tracking controls usually moves the bands off the screen.
Can tracking lines be removed when digitising a VHS tape?
Yes, in most cases. Playing the tape on a serviced, well-aligned deck that tracks it correctly clears the noise bands, and a line TBC plus a frame-store TBC then remove the timing jitter and line-tear before capture. A basic USB grabber has no time base correction, so any wobble that is left goes into the file.
Will cleaning the VCR heads fix VHS static?
Cleaning the VCR heads properly will fix static if the cause is accumulated oxide dust or dirt blocking the magnetic signal. Use isopropyl alcohol and chamois swabs rather than abrasive dry cleaning cassettes. If the static remains after a thorough wet clean, try a second tape and a second player: the heads may be worn, or the fault may be in the tape, the tracking or the deck's electronics.
Is a VHS tape with heavy tracking lines still recoverable?
Usually, yes. In our self-selected Q1 2026 UK intake, 103 of 120 tapes (86%) reported with tracking lines or playback faults played in full on our lab chain without repair. The lines are usually a symptom of the home playback chain, not damage to the tape.
Why do my 1980s VHS recordings sound muffled?
Early 1980s VHS recordings often sound muffled because they were made on the linear mono track, which reaches about 10 kHz at best and less on slower UK PAL tapes. VHS Hi-Fi stereo, with roughly 20 Hz to 20 kHz response, was introduced in 1984 on higher-end decks, and many family recorders stayed mono. Dirty heads, mismatched head azimuth or poor tracking make any VHS recording sound duller still.
What is the difference between tracking lines and dropout?
Tracking lines appear as thick, fuzzy horizontal bands that move when you adjust the player controls. Dropout appears as brief, sharp white or black horizontal dashes caused by missing magnetic oxide on the tape. Tracking lines are an alignment fault that correct tracking on a serviced deck clears; dropout is lost signal that can be masked but not fully rebuilt.
Sources and method
- EachMoment UK intake data, Q1 2026, n=120 enquiries (one primary cause attributed per case; if the tape played cleanly on our lab chain, the cause was attributed to the customer's player, TV connection or tracking based on reported symptoms).
- EachMoment UK lab bench, n=10 full-size VHS tapes, each captured through both a consumer chain (home VCR + £30 RCA-to-USB grabber, no TBC) and the lab chain; resolution read from a multiburst test signal, frame errors counted as dropped plus repeated frames; medians reported.
- Method note: player and TV causes are inferred from the symptoms owners reported after their tape played cleanly on lab equipment; they were not bench-tested on the owner's machine. The sample is self-selected (people who contacted a digitisation lab). "Intact" means the tape played in full on our lab chain without repair.
- VHS audio specifications from the VHS format reference.
- Tracking background from video tape tracking.
