VHS Picture Distorted at Bottom of Screen: Head Switching Noise Explained

A VHS picture distorted at the bottom of the screen is almost always head switching noise. A VCR reads the tape with two spinning video heads, and once per field it hands over from one head to the other. That handover sits in the last few lines of the picture, so those lines tear, wobble or flicker. CRT televisions hid this strip behind the edge of the screen (overscan). Flat-screen TVs and capture devices show the whole picture, so the band appears. It is normal and it is not damage. It only signals a real fault when the band is thick, jumps around or creeps up into the picture.

What causes the VHS picture distorted at bottom of screen?

Two heads, one handover

Inside every VHS recorder is a tilted, spinning head drum with two video heads mounted opposite each other. Each head writes one field, which is half of each picture, as a long slanted stripe across the tape. During playback the drum keeps alternating between the two heads, one field each.

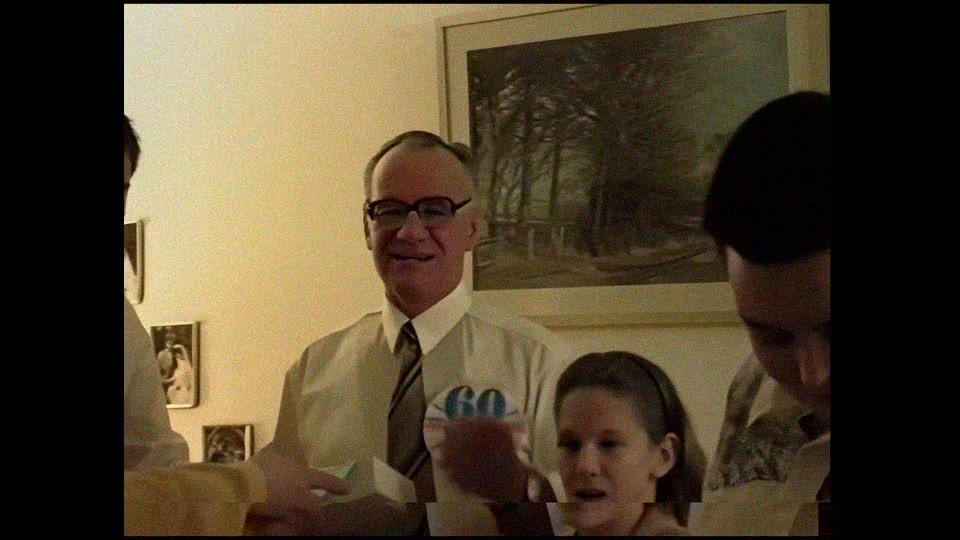

The moment the signal passes from one head to the other is the head switching point. JVC's designers put it on purpose just before vertical sync, in the last few lines at the very bottom of the frame, where it would do the least harm. The two heads never line up perfectly in timing, so the switch leaves a narrow strip where the lines shift sideways, jitter or fill with noise. That strip is head switching noise.

Why your old television never showed it

A tube television drew the picture slightly larger than the glass, so a margin of picture on every side, called overscan, was never visible. The head switching strip lived inside that hidden margin. JVC launched VHS in Japan in 1976, and Funai made the last VHS player in 2016. Across those decades, most families never saw the band.

Capture software and laptops show the full picture with no overscan, and many flat-screen TVs overscan far less than a tube did, or not at all in 'just scan' or 'fit' mode. Nothing about the tape has changed. The screen now shows a part of the signal that was always there.

Is head switching noise damaging my tapes?

No. Head switching noise is created during playback by the deck. It is not a scratch, mould or wear on the tape, and it does not get worse each time you play the tape. Every VHS tape has it, including shop-bought films.

Try this quick check. Play a shop-bought film tape on the same VCR and TV. If the film shows the same thin band at the bottom, your home recordings are fine and you are looking at the format, not a fault. If the film looks clean and only your home tapes show a thick, unstable band, the problem is the tape or the way it was recorded.

Normal band or real fault? How to tell

Head switching noise has a recognisable look: a thin strip of a few lines, always in the same place, on every tape. Other faults look different, and some of them do cost you picture.

What you see	Likely cause	What to do
A thin tearing band in the last few lines, on every tape	Head switching noise (normal)	Nothing on playback; mask it at transfer
A thick band that jumps up and down or creeps into the picture	Tracking error or a stretched or creased tape edge	Read why the tracking control can't fix a worn tape
The top of the picture bends sideways and verticals curve	The TV or capture device is losing sync (flagging)	Use a time base corrector (TBC) between deck and capture
The whole picture rolls up or down	Vertical sync loss	See what causes a rolling VHS picture
White streaks or speckles anywhere in the frame	Dropouts from oxide loss or dirty heads	See how a lab deals with lines and dropout

The bottom edge of the picture is recorded close to the edge of the tape. If a tape has been chewed, creased or stretched along that edge, the distortion at the bottom grows into a wide, ragged band. That damage is real, and repeated playback on a home VCR makes it worse.

Why a USB capture dongle makes it look worse

A VHS tape never plays at perfectly even speed. The tape stretches, the drum speed varies a fraction, and the timing of every line wobbles slightly. A CRT television followed that wobble without complaint. A digital capture device expects regular, clean timing, and it struggles most at the head switching point, where the timing jumps.

A cheap USB capture dongle, typically around £30, has no time base correction. That causes two separate problems. When it loses lock it drops or repeats frames, and the unsteady timing at the switching point makes the bottom band tear more widely than it does on a television. We measured this on our UK lab bench by capturing the same 10 VHS tapes through two chains. A home VCR into a USB grabber with no TBC produced a median of 14 dropped or repeated frames per minute. That is about 2,520 across a 3-hour E-180, plus about 3 seconds of sound drift by the end of the tape.

The same tapes played on a Panasonic AG-1980P through a DPS Reality TBC into a Blackmagic DeckLink produced 0 dropped or repeated frames and held sound to within one frame. The TBC chain also recovered more detail: a median of about 234 horizontal lines against about 205 on the dongle, close to the roughly 240 lines VHS can hold. Our comparison of VHS-to-USB capture devices covers the full bench.

Method: EachMoment UK lab bench, 10 home-recorded full-size VHS tapes, each captured twice (median values). Frame errors counted as dropped plus repeated frames per minute; resolution read as effective horizontal luminance lines on a multiburst pattern.

Measure	Home VCR + ~£30 USB grabber (no TBC)	AG-1980P + DPS Reality TBC + DeckLink
Dropped or repeated frames per minute	14	0
Frame errors across a 3-hour E-180	about 2,520	0
Sound drift over a 3-hour tape	about 3 seconds	under one frame
Effective horizontal lines	about 205	about 234 (VHS ceiling ~240)

How to hide head switching noise if you capture at home

1. Clean and test the VCR first. Play a shop-bought tape to confirm the band is thin and steady.
2. Use a deck with a built-in TBC if you can. S-VHS decks with a line TBC reduce the wobble at the switching point, although a few torn lines remain.
3. Set tracking for the cleanest picture, not the cleanest bottom edge. Tracking cannot remove head switching noise.
4. Capture the full frame. Keep the band in the raw file so nothing is lost if you change your mind later.
5. Mask, don't zoom. In your editor, cover only the last few lines with a thin black bar at the bottom, as overscan did.
6. Keep the original aspect ratio. Export at the same frame size so the picture is not stretched.

What not to do:

• Don't open the VCR to adjust drum timing or the switching point. It needs service tools and can ruin the deck.
• Don't keep replaying a tape whose bottom edge is creased or chewed. Each pass wears it further.
• Don't zoom or crop heavily to hide the band. You throw away real picture and resolution.
• Don't run a stabilise filter over a whole clip to fix a bottom-edge problem. It warps the rest of the picture.

How our lab handles it during a transfer

We treat head switching noise as a known feature of the format and deal with it in a fixed order, so every transfer looks the same.

1. Clean, adjusted professional deck. Each tape plays on a cleaned Panasonic AG-1980P, or a JVC BR-S925E professional S-VHS deck for difficult tapes.

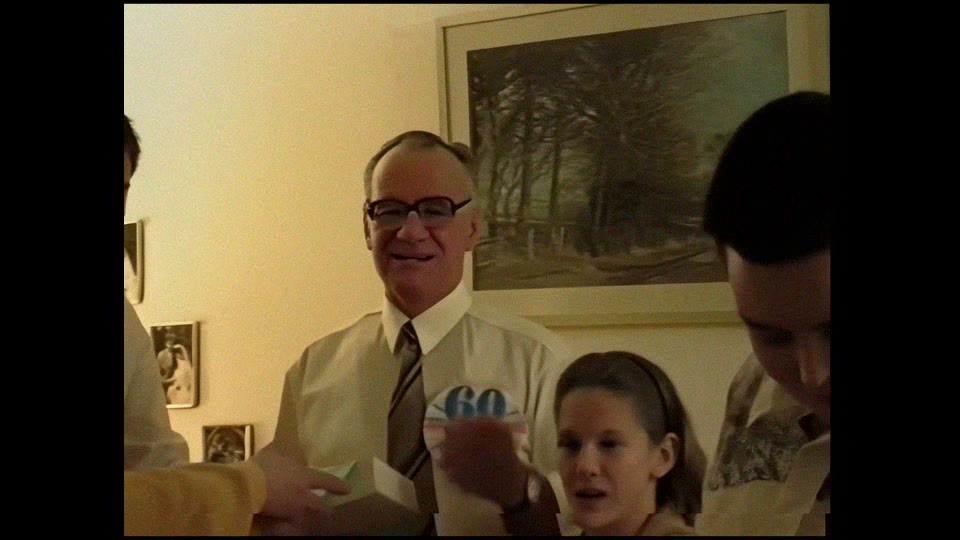

2. Line TBC. The deck's built-in line TBC steadies every scan line, which narrows the tear and reduces the wobble.
3. Frame TBC. A DPS Reality TBC gives the capture card clean, regular sync, so no frames are dropped and the sound stays in step. It does not straighten the switching lines themselves; that is the line TBC's job, and the mask finishes it.
4. 10-bit capture. A Blackmagic DeckLink records the picture and sound in one 10-bit 4:2:2 pass.

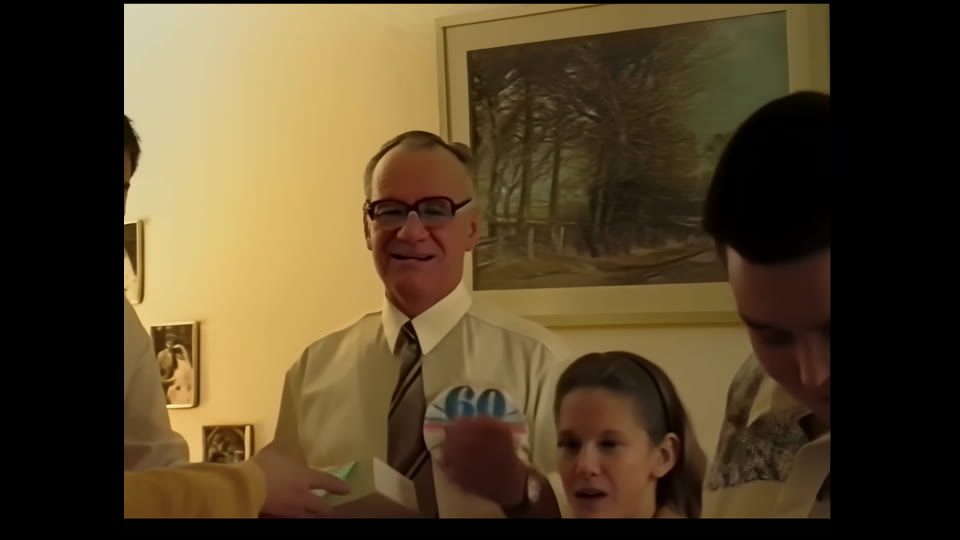

5. Overscan mask. The last few lines are masked in black in the master, in the way a tube TV did. Only the strip a typical tube TV hid in overscan is covered.

Panasonic AG-1980P

Professional S-VHS deck with built-in line TBC

Reference deck

• Steadies every scan line
• Manual tracking control
• S-Video output

JVC BR-S925E

Professional S-VHS deck

Second deck

• Built for edit suites
• Robust transport
• Used for difficult tapes

DPS Reality TBC

Time base corrector and frame store

Every transfer

• Rebuilds clean sync
• No dropped or repeated frames
• Holds audio in step

Blackmagic DeckLink

Capture card

Capture stage

• 10-bit 4:2:2
• Picture and sound in one pass
• Archive-grade master

What it costs to have it done properly

Our VHS to digital service costs £14.99 per tape at the base price, falling to £7.50 per tape with volume discounts of up to 50% when your Memory Box comes back within 4 weeks. A cloud download is included with every order, and a USB copy is £19.99.

It works in four steps: order a Memory Box online, pack your tapes, post it back, then download your films. Every tape goes through the same TBC chain and overscan mask described above. If you have unusual tapes or a large collection, get a quote first.

Frequently asked questions

Why is there a wobbly line at the bottom of my VHS picture?

It is head switching noise. Your VCR reads the tape with two spinning heads and hands over from one to the other once per field. The handover sits in the last few lines of the picture, so those lines wobble or tear. Old tube televisions hid that strip behind the screen edge. Modern screens show it.

Can head switching noise be removed completely?

It can be hidden completely but not removed from the signal, because every VCR creates it during playback. A line TBC steadies the strip. A thin black mask over the last few lines then hides it, as a CRT television's overscan did. That is how we finish every transfer.

Does cropping the bottom of a VHS transfer lose picture?

A thin mask over the last few lines loses nothing you ever saw, because that strip sat in the overscan area on a tube TV. Zooming or heavy cropping is different. It cuts real picture from every edge and lowers the resolution, so mask the bottom lines rather than zoom.

Why does my VHS look fine on an old TV but distorted on a new one?

A tube television drew the picture larger than the screen, hiding the edges in overscan. A flat-screen TV shows almost the whole signal, including the head switching strip at the bottom. Flat screens also cope less well with a tape's unstable timing, which can make the band look wider.

Will a better VCR get rid of the distortion at the bottom of the screen?

A better deck makes it smaller and steadier but does not remove it. A clean, well-adjusted S-VHS deck with a built-in line TBC reduces the wobble at the switching point. Adding a separate time base corrector stops dropped frames. The last few lines still need masking.

Does the distortion mean my tape is going bad?

Not if it is a thin, steady band that also appears on shop-bought tapes. That is normal. A thick band that jumps around or moves into the picture points to tracking problems or a damaged tape edge. Those tapes are worth sending to a lab before they are played much more.
