VHS output resolution in the UK is a PAL 576-line interlaced signal (576i) at 50 fields per second, but the tape itself holds only about 240 lines of real horizontal detail, roughly 320 points across the picture. A "1080p" upscaler cannot add detail that was never recorded. Most of the jagged edges and blockiness you see on a modern TV come from the upscaler itself: it drops half the picture, stretches the remainder with crude maths and then sharpens the damage.
When you plug a VCR into a modern Full HD or 4K TV using a budget SCART-to-HDMI or composite-to-HDMI converter, the picture often looks significantly worse than you remember. A cheap box usually throws away half the interlaced fields, stretches the rest using basic scaling algorithms, applies harsh sharpening, and fails to correct wobbly tape timing because it lacks a time base corrector. Below, we show our own bench simulation of how much structure each of those shortcuts destroys, and how to get a better picture from your old video cassettes, whether you want to watch them tonight or keep them for good.
Key takeaways
- VHS output resolution in the UK is PAL 576i: 576 visible lines at 50 fields per second, captured digitally at 720×576.
- The tape itself holds only about 240 lines of horizontal detail (roughly 320 points across), so "1080p" describes the box's output, not the picture's detail.
- Budget upscalers look pixelated because they drop one field (288 lines), stretch it crudely, then sharpen it, and budget boxes have no time base corrector.
- In our October 2026 bench simulation (3 clips, 390 frames), the cheapest scaler path had 10.3% structural error, about 17 times the 0.6% of a correct lab chain. Sharpening caused the biggest jump.
- For watching: set the box to 720p, turn TV sharpening off, use 4:3. For keeping: capture at native 720×576 with time base correction, never through an upscaler.
What resolution does VHS actually output?
The VHS output resolution for a standard UK tape is fixed by the PAL format (see the VHS format specification). A PAL frame contains 625 lines in total, of which 576 are visible on screen. Because it is interlaced, these lines are delivered as 50 fields per second, with each frame made up of two 288-line fields, equating to 25 frames per second.
However, the horizontal detail recorded on the tape is much lower than the 720-pixel capture grid suggests. Domestic VHS records about 240 lines of horizontal luminance resolution (which represents about 3 MHz of luminance bandwidth). TV lines are counted per picture height, so this translates to roughly 320 points of real detail across the full 4:3 width. These are not the same as scan lines: the 576 scan lines set the vertical grid, while the 240 TV lines describe how fine a detail the tape can resolve from left to right. The standard digital capture grid for PAL is 720×576 pixels (ITU-R BT.601 sampling). Consequently, 720×576 equals 414,720 pixels, which is more than enough to capture all the detail a VHS tape can offer.
Colour detail on VHS is even lower. VHS colour is recorded "colour-under" on a sub-carrier lowered to about 627 kHz in PAL. Because colour detail is far lower than brightness detail, colours naturally smear and bleed across the screen. An American or Japanese tape will be NTSC, which uses 525 lines at 29.97 fps (captured at 720×480), and you will occasionally find American or Japanese NTSC tapes in the UK. Super VHS (S-VHS), introduced in 1987, reaches about 400 lines, but it is far rarer in UK family collections.
When you view a VHS tape on a modern display, understanding the jump in resolution is crucial. Full HD (1920×1080) contains 2,073,600 pixels, which is 5 times the PAL SD grid. A 4K UHD screen (3840×2160) holds 20 times the PAL SD grid. Most UK home recordings on VHS are 4:3; stretching them to fill a 16:9 widescreen display widens everything by one third.
| Measure | PAL VHS (UK) | What it means on a modern TV |
|---|---|---|
| Signal format | 576i, 50 fields/s (25 fps) | Interlaced: needs deinterlacing for a flat-panel TV |
| Visible lines per frame | 576 (two 288-line fields) | Keep both fields or you lose half the vertical detail |
| Real horizontal detail | ~240 TV lines (~320 across) | Far below even the 720-pixel capture grid |
| Colour detail | Recorded "colour-under" at ~627 kHz | Colours smear; no scaler can sharpen them back |
| Native capture grid | 720×576 (414,720 pixels) | The correct digitising resolution |
| Full HD 1920×1080 | 5× the PAL pixel grid | A correct 4:3 picture fills 1440×1080; stretching to full width spreads the same detail even thinner |
| 4K UHD 3840×2160 | 20× the PAL pixel grid | Often scaled twice (box, then TV) |
| Aspect ratio | 4:3 | Stretching to 16:9 widens faces by one third |
Why your 1080p upscaler makes VHS look pixelated
The term "1080p" on a budget converter box describes the output container, not the level of detail inside it. VHS looks pixelated through a cheap HDMI upscaler for five reasons:
- It builds each picture from one 288-line field instead of the full 576-line frame.
- It stretches those 288 lines to 1080 with crude nearest-neighbour or bilinear maths.
- It sharpens the result, which turns soft edges into steps with bright halos.
- It has no time base corrector, so wobbly lines get stretched and sharpened too.
- On a 4K TV, the picture is scaled a second time.
It throws away half the picture
To save processing power, budget converter chips either drop one field or line-double each field on its own (known as "bob" deinterlacing). Either way, each output picture is built from a single 288-line field instead of the full 576-line frame that proper deinterlacing reconstructs from both fields. Vertical detail is halved before scaling even starts.
It stretches with the crudest maths
Going from 288 lines to 1080 lines means each source line has to fill 3.75 rows on a Full HD screen. Nearest-neighbour scaling simply copies each line and pixel to fill the space; basic bilinear scaling blends neighbours into a soft blur that the box then sharpens. With nearest-neighbour, diagonal edges become visible steps, causing a distracting staircasing effect known as "jaggies".
It sharpens to look "HD"
Budget boxes add aggressive edge enhancement so the image looks crisp and modern. However, on a soft, noisy medium like VHS, sharpening merely amplifies tape noise and the jagged steps created by crude scaling. It also adds bright halos around outlines. In our bench measurements, this single step took the structural error from 3.8% to 10.3%.
It can't fix timing (no TBC)
VHS playback suffers from time base error. Because the tape physically stretches and the VCR mechanism wobbles slightly, each line of the picture arrives slightly early or late. A time base corrector (TBC) re-times every line against a stable reference. Budget upscaler boxes do not have one. As a result, wobbly lines get sharpened and stretched into shimmering, jagged edges, or the box gets confused by the unstable signal and drops it entirely, which is why you often see "No Signal" on a SCART-to-HDMI adapter.
It gets scaled twice
If you connect a "1080p" upscaler to a modern 4K TV, the box scales the SD signal to 1080p, and then the TV scales it again to 2160p. This introduces two rounds of scaling artefacts. A high-quality modern TV fed a clean 576-line signal directly often scales the image far better than a budget external box.
There is one more source of "pixelation", and it only shows up in files. A cheap USB grabber compresses the video to 8-bit 4:2:0 with a hard bitrate cap, so fast motion breaks into blocky squares (macroblocks). That is compression damage, not scaling damage, and it stacks on top of everything above.
Our bench test: where a cheap upscaler loses the detail
To show how much picture structure each budget-scaler shortcut destroys, we ran a simulation on our own bench in October 2026. We took 3 PAL VHS reference clips (390 frames in total) and sent each through four cumulative output paths using FFmpeg. We then measured each result against the correctly scaled reference at 1440×1080 using SSIM (structural similarity, luma channel) to calculate the "structural error" (1 - SSIM) as a percentage. Lower is better.
| Output path | SSIM (luma) | Structural error | vs lab chain |
|---|---|---|---|
| Lab chain | 0.994 | 0.6% | 1× |
| One field discarded | 0.979 | 2.1% | ~3.5× |

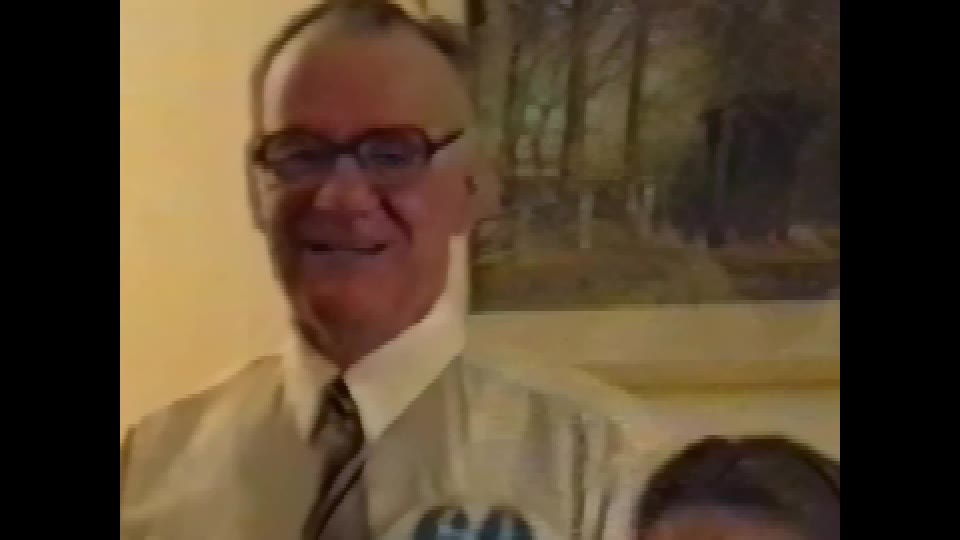

| + nearest-neighbour stretch | 0.962 | 3.8% | ~6× |
| + edge sharpening | 0.897 | 10.3% | ~17× |
How we measured: We took 3 PAL VHS reference clips (390 frames in total) and measured the luma channel against a reference image (the full 576-line frame scaled once with a Lanczos filter to 1440×1080) using the FFmpeg ssim filter. The lab chain scores 0.994 rather than 1.000 because it passes through the 720×576 tape grid on the way; that 0.6% is the cost of the format itself. Each later stage adds one shortcut on top of the previous one. This simulates common scaler shortcuts on our reference footage; it is not a lab test of any named product, and a particular box will differ in exact behaviour.
The results show that the tape itself is exactly the same in every stage; only the processing changes. The cheapest upscaler path ends up with about 17 times the structural error of the correct lab chain, and the biggest single jump in error comes from aggressive edge sharpening, not the tape itself.
How to get the best picture from a VCR on a modern TV
If you want to watch a VHS tape on a modern TV and improve the picture, follow these practical steps to bypass the worst artefacts.
- Check the input and cable first. In our Q1 2026 intake data, out of 120 UK enquiries that opened with "my player isn't working", 16% turned out to be a TV input or cable problem, not the tape or the deck. Make sure your SCART lead is fully wired and the TV is on the correct input channel.
- Set the converter to 720p, not 1080p, if it has a switch. In our experience, the smaller jump means the box does less crude stretching and the TV's own scaler, usually the better of the two, does the rest. Try both settings on the same tape and keep whichever looks cleaner.
- Turn TV "sharpness", "edge enhancement", "super resolution" and extra noise reduction off or to 0. On a noisy VHS signal, these "enhancement" settings simply make the jaggies and grain much worse.
- Set the TV picture to 4:3 ("Original" or "Just Scan"), not "Wide/Zoom". This ensures faces and objects aren't stretched horizontally by a third.
- Use the TV's own SCART or composite input if it still has one. A modern television's built-in scaler usually beats a budget external box.
- Clean the heads and check tracking. The tracking control lines the heads up with the recorded tracks, which clears noise bars and some dropout. It does nothing for time base error, so a wobbling picture still needs a TBC. You can learn more about tracking lines and dropout in our dedicated guide.
These steps improve watching your tapes on a TV. However, they do not change the digital data that ends up in a file if you decide to capture your tapes through the same equipment.
Capturing to a file: why native resolution beats "HD"
When you digitise a VHS tape, you should capture it at its native 720×576 resolution, keep both fields, deinterlace once, and scale once (or leave the scaling entirely to the media player). You should never capture through an HDMI upscaler into a "1080p" file. Doing so bakes the dropped field, jaggies and sharpening halos into the file permanently, and the encoder has to spend its bitrate on 5 times as many pixels without a single extra line of real detail.
If you are considering capturing at home, cheap USB capture dongles (around £30) are prone to blocky motion because they compress the video to 8-bit 4:2:0 with a strict bitrate cap. Furthermore, time base correction must happen BEFORE the signal is digitised. Software cannot fully undo wobbly timing errors once they are baked into a digital file.
When scaling is done properly from a clean native capture, AI can produce a very pleasing Full HD version. AI reconstructs plausible detail, but it does not recover detail the tape never held. That is why we offer AI-restored Full HD as an optional £4.99 per tape add-on on top of a clean native capture, not instead of one. If you want a file that keeps everything the tape holds, send your tapes to our lab.
Home VCR, SCART or composite out
Where the signal starts: PAL 576i, 50 fields a second
Source
- About 240 TV lines of horizontal luminance detail
- Colour recorded at far lower resolution ('colour-under')
- No time base correction on most home decks: the timing wobbles
SCART-to-HDMI upscaler box
Converts analogue to HDMI and scales to 720p or 1080p
The usual culprit
- Budget chips often keep one field and drop the other (288 lines)
- Cheap stretch plus edge sharpening, which turns soft edges into steps
- Cannot fix timing jitter and often loses lock on worn tapes
Your TV's own scaler
Takes whatever arrives and scales it to the panel (1080p or 4K)
Second scaling pass
- A 1080p signal from the box gets scaled again on a 4K set
- Double scaling adds a second round of artefacts
- Fed a clean 576-line signal, a modern TV usually scales better than a budget box
Panasonic AG-1980P + DPS Reality TBC
Broadcast playback with time base correction
Lab playback
- Re-times every line before digitising
- Removes the jitter that upscalers sharpen into jagged edges
- Keeps both fields, so the full 576-line frame survives
Blackmagic DeckLink, 10-bit 4:2:2
Uncompressed capture at the native PAL raster
Lab capture
- 720×576, the ITU-R BT.601 PAL sampling grid
- 10-bit 4:2:2: no 8-bit banding baked in
- Captured once at native resolution, scaled once later if needed
Your digital file
What comes back in the Memory Box workflow
What you keep
- Deinterlaced 720×576 H.264 file that plays on any device
- Optional AI-restored Full HD version made from the clean capture
- No upscaler box in the chain at any point
What happens when we digitise your tapes
At EachMoment, we use professional broadcast equipment to bypass scaling errors entirely. The process starts when you order a Memory Box. The pre-paid Memory Box arrives at your door, you pack your tapes inside (you do not need a working VCR), and post it back to us.
Once on our bench, every tape goes through the same chain:
- Each tape is carefully inspected and cleaned.
- Tapes are played on a Panasonic AG-1980P broadcast S-VHS deck.
- The signal passes through a DPS Reality time base corrector to eliminate wobble.
- We capture the output using a Blackmagic DeckLink in uncompressed 10-bit 4:2:2 at native 720×576.
- The final delivery file is a cleanly deinterlaced 720×576 H.264 MP4 that plays on any phone, laptop or smart TV.
- An optional AI-restored Full HD version can be made from that clean capture.
The price is £14.99 per tape, falling to £8.99 per tape with volume discounts. Full details, turnaround and what comes back are on our VHS digitisation service page.
Frequently asked questions
What is the output resolution of a VHS tape?
A UK VHS tape outputs a standard PAL 576i signal, meaning 576 visible interlaced lines at 50 fields per second. However, the real horizontal detail stored on a standard domestic VHS tape is only about 240 TV lines, which equates to roughly 320 points of real detail across the picture. In pixel terms, that is about 320×576 of genuine detail inside the standard 720×576 capture grid.
Why does VHS look pixelated on my 4K TV?
VHS output resolution is low, but the severe pixelation comes from cheap scaler boxes and double scaling. Budget converters throw away one field (288 lines), stretch the rest with crude scaling and add edge sharpening, then a 4K TV scales the result a second time. In our bench the sharpened path had about 17 times the structural error of a correct scale.
Should I set my SCART-to-HDMI converter to 720p or 1080p?
You should set your converter to 720p if it has a physical switch. A smaller jump from 576i to 720p means the cheap box does less crude stretching. A modern TV usually has a better scaler than a budget box, so letting the TV stretch the 720p signal to fill the screen yields better results.
What resolution should I capture VHS at?
You should always capture VHS at its native PAL resolution of 720×576. Capturing at 1080p through an upscaler box permanently bakes scaling artefacts, dropped fields, and sharpening halos into the file. A native 720×576 capture preserves exactly what is on the tape without artificially inflating the file size.
Can upscaling VHS to 1080p or 4K add more detail?
No basic upscaling box can add detail that was never recorded on the tape. Basic scalers simply stretch the existing pixels. AI upscaling applied to a clean native capture can reconstruct plausible detail for a pleasing Full HD look, but real detail is limited to the roughly 240 TV lines of horizontal resolution the tape recorded.
Is S-VHS higher resolution than VHS?
Yes, Super VHS (S-VHS) records higher horizontal resolution than standard VHS. While standard VHS captures about 240 TV lines of horizontal detail, S-VHS can resolve up to 400 TV lines. However, S-VHS still outputs the standard PAL 576-line interlaced signal format, meaning it requires the same careful capture process.
